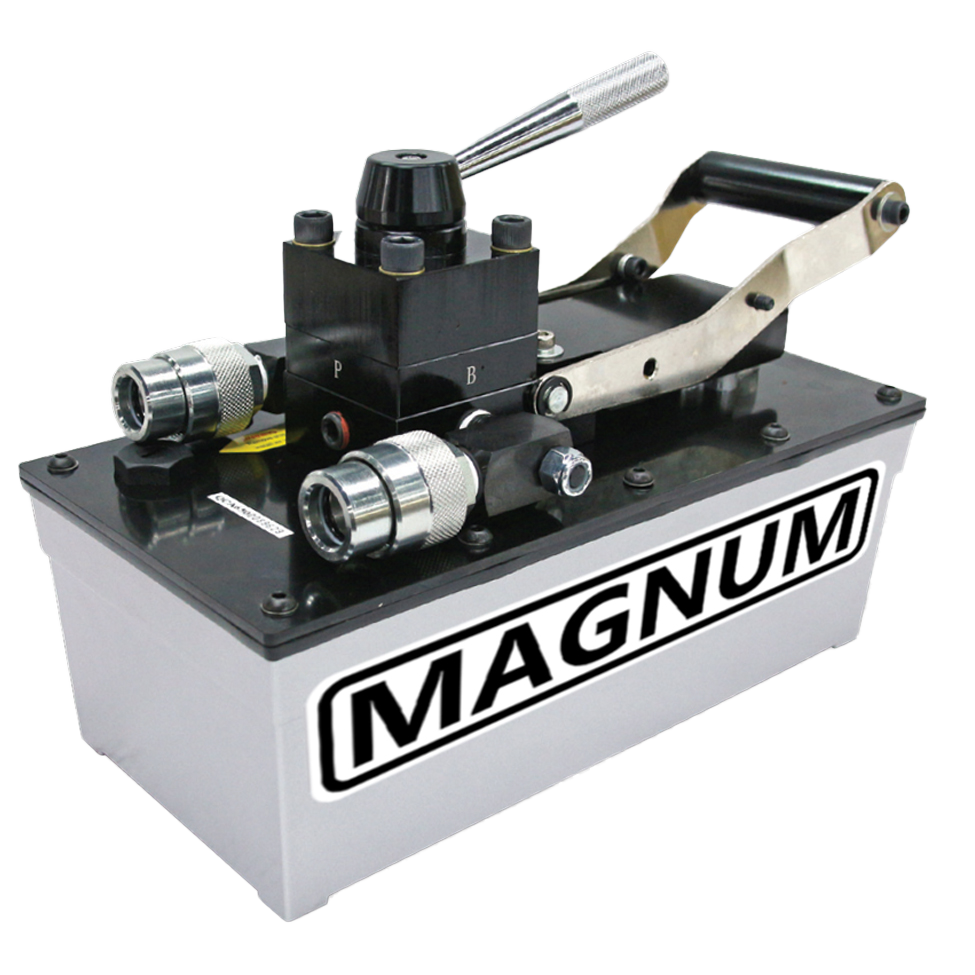

Magnum 3000DA Double Acting Air Hydraulic Foot Pump
Regular price
INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE
- The MAG3000DA air-powered hydraulic pumps is designed for use with single-acting and double acting cylinders and tools.
- Rugged construction. Most components are made of Aluminium alloy and built for long service life, easy operation and portability.
- Automatic overload relief setting at 10,000 psi protects components in the hydraulic system to ensure work safety.
- New swivel inlet & outlet design for hydraulic hoses on double acting pumps. Features a quiet, low air volume exhaust.
|
Model No. |
Acting |
Max Pressure Output (psi) |
Value |
Oil Delivery (cc/min. @)* |
|||||||
|
Type |
Function |
0 (psi) |
100 (psi) |
5000 (psi) |
10000 (psi) |
||||||
|
MAG3000DA |
Double |
10,000 |
3 Position / 4 Way |
Advance/ Hold/ Retract |
1250 |
--- |
---- |
195 |
|||
|
Model No |
Input Air Pressure (kg) |
Reservoir Capacity (c.c) |
Usable Oil Capacity (c.c) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
J (mm) |
Weight (kg) |
|
MAG3000DA |
7-10 |
3000 |
2500 |
247 |
190 |
114 |
309 |
160 |
98 |
3/8”-NPT |
343 |
289 |
12 |
