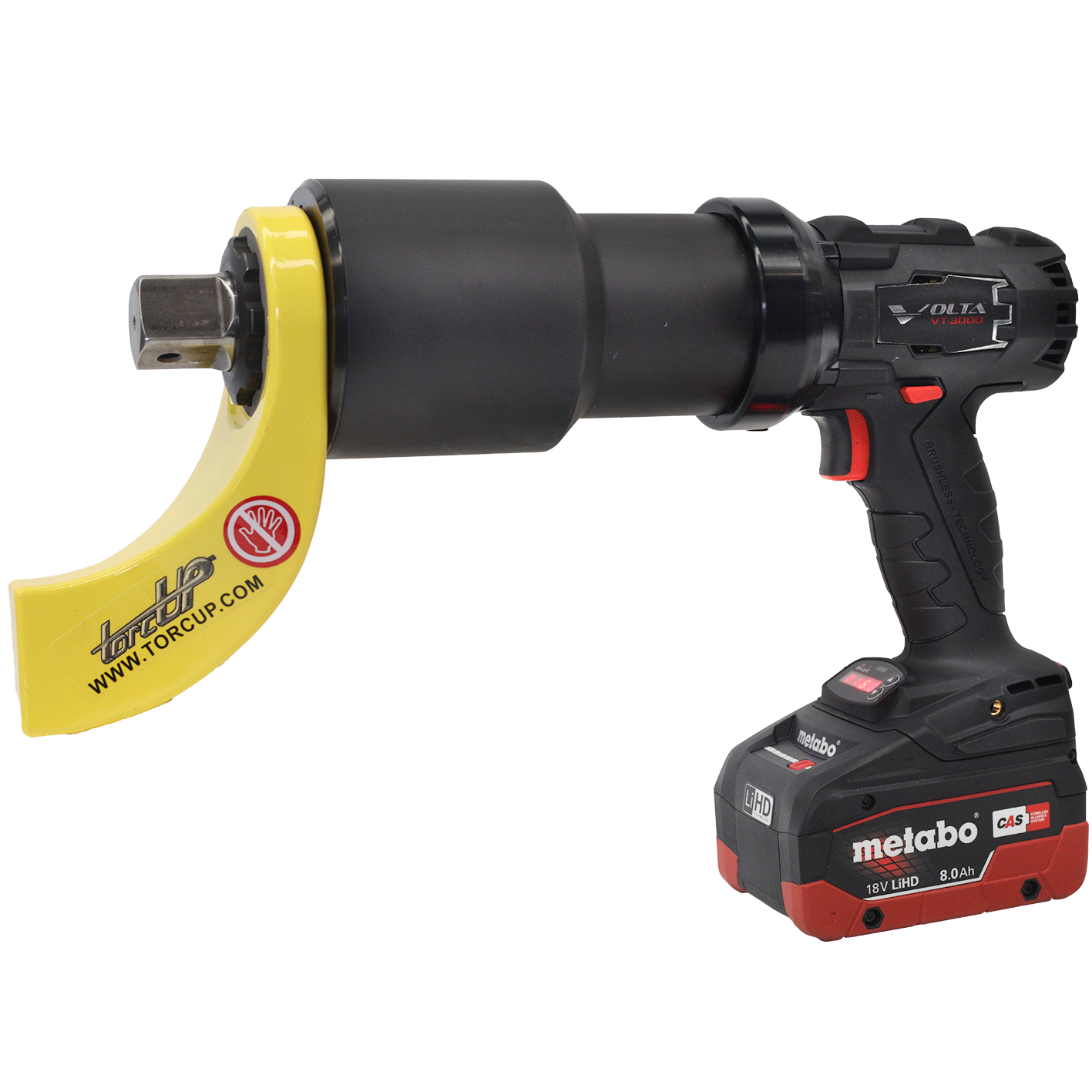

Volta VT Battery Torque Multiplier
Regular price
INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE
Want to hire instead? Find out if we can help Enquire here
The Volta VT Battery Torque Multiplier is engineered out of the USA by TorcUP Inc, to master the ability to torque industrial fasteners easily, simply and safely.
The VT Battery Torque Wrench will provide you with the capability to torque hundreds of fastenings with no hoses or cords to limit your reach.
Within the VT is a digital motor vectoring system that provides accurate and repeatable torque throughout each model's full range. The VT exemplifies the durability, reliability and safety.
Hytools NZ are the New Zealand Agents for the VT Battery Torque Multiplier, we provide full service and calibration for the tools in house.
Download Catalogue
Features:
1. Hardened alloy steel for durability and long cycle life
2. Bearings support the loads experienced at the square drive
3. Multi-stage planetary gear systems with optimized tooth design
4. Smooth ball bearing rotation of the gearbox housing independent from the motor
5. High-Efficiency Brushless Motor
6. Ergonomic glass-filled Nylon handle with a durable slip-resistant over-mold
7. 18V 8.0 Ah LiHD Battery that provides extended run-time
8. LCD display for easy setting and viewing Torque and Units
9. Soft-Start Trigger
10. Thrust bearing between stages isolate the motor when used in all orientations
11. O-Rings Seal grease in while keeping dirt and water out
12. Gears run on low friction, high strength bearing sleeves
13. Tool steel pins in each stage carrier
|
Model |
VT-500 |
VT-1000 |
VT-2000 |
VT-3000 |
VT-6000 |
|
Square drive (in) |
3/4” |
1” |
1” |
1” |
1 ½” |
|
Min. Torque (lb-ft) |
120 |
240 |
500 |
750 |
1200 |
|
MAX TORQUE (lb-ft) |
500 |
1000 |
2000 |
3000 |
6000 |
|
Min. Torque (Nm) |
160 |
330 |
680 |
1020 |
1626 |
|
Max torque (Nm) |
670 |
1360 |
2710 |
4030 |
8133 |
|
Height A (w/ Battery) (mm) |
267.7 |
273.3 |
289.1 |
||
|
Legth B (mm) |
195.1 |
241.8 |
259.8 |
316.7 |
334.5 |
|
Diameter C (mm) |
84.3 |
72.4 |
78.5 |
95.3 |
127.0 |
|
Weight (w/ Arm & Battery) (kg) |
4.9 |
6.7 |
7.4 |
10.3 |
19.2 |
|
RPM at Min. Torque |
12.5 |
4.75 |
2.9 |
1.25 |
0.9 |
|
RPM at Max Torque |
17.5 |
6.75 |
4 |
1.95 |
1.3 |
