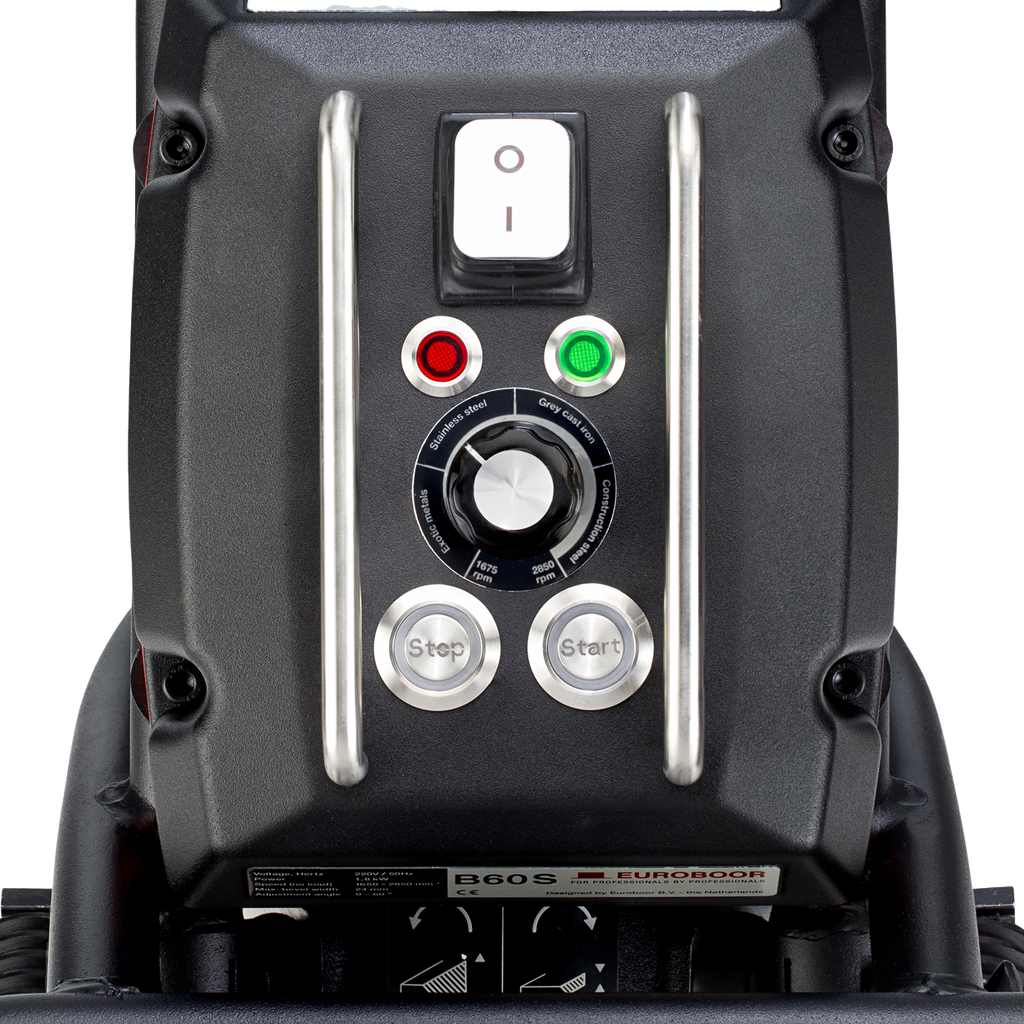

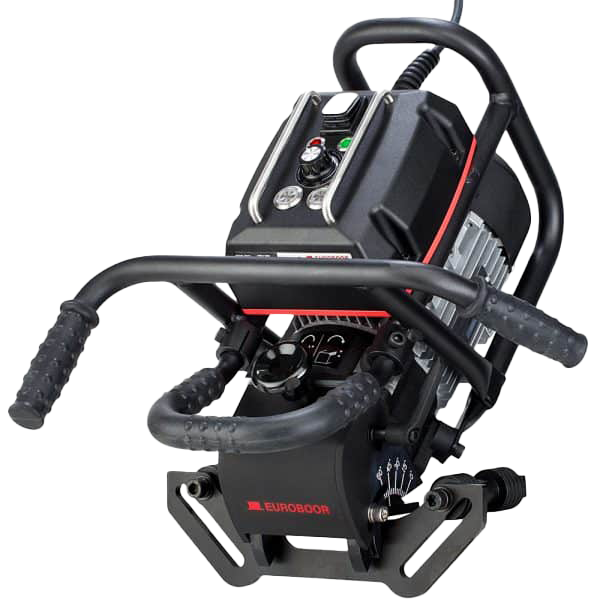

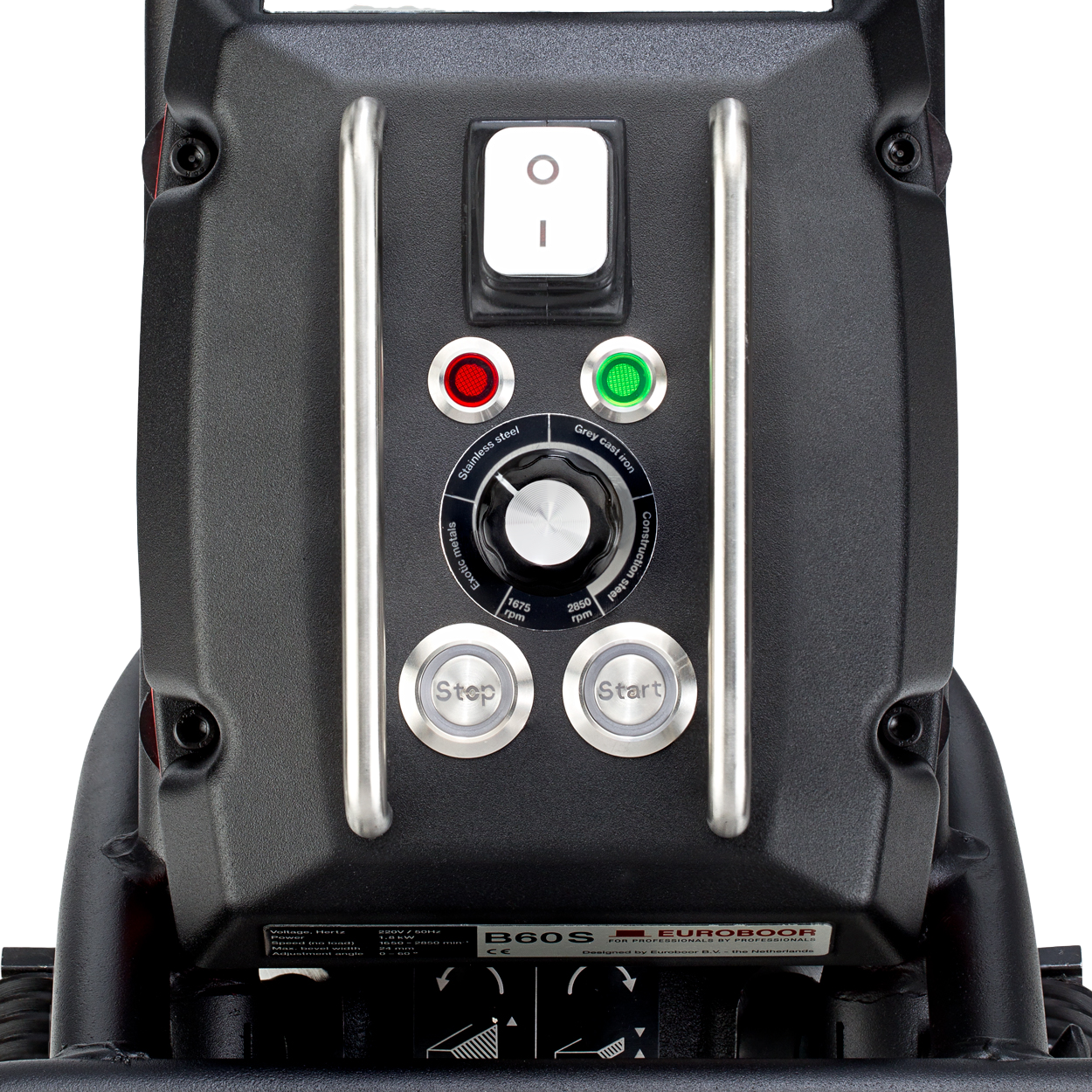

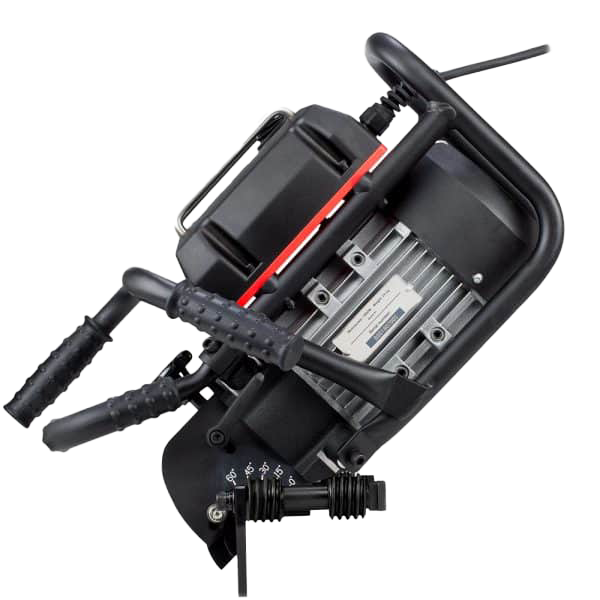

The Euroboor TRUB60S bevelling machine has a maximum bevel width of 24 mm, at an angle of 45˚, which is unique in the market. Furthermore, this machine benefits from an exceptional powerful 1800 W motor making this machine very suitable for not only cutting stainless steel but a wide variety of materials. The Euroboor TRUB60S is equipped with overload protection and has a variable speed, including material type indicator. This machine is suitable to cut both plate and pipe material.
Properties
| Dimensions |
| maximum bevel size at 0 degrees (millimeter) |
24 |
| maximum bevel size at 15 degrees (millimeter) |
20.2 |
| maximum bevel size at 30 degrees (millimeter) |
20.6 |
| maximum bevel size at 37.5 degrees (millimeter) |
21.4 |
| maximum bevel size at 45 degrees (millimeter) |
24 |
| maximum bevel size at 60 degrees (millimeter) |
20.4 |
| minimum bevel size (millimeter) |
20.2 |
| maximum bevel size (millimeter) |
24 |
| length (millimeter) |
415 |
| width (millimeter) |
375 |
| height (millimeter) |
268 |
| Properties |
| nett weight (kilogram) |
24.1 |
| system of measurement |
mm (metric) |
| application |
beveling |
| Performance |
| no-load minimum rotation speed gear 1 (rotations per minute) |
1675 |
| no-load maximum rotation speed gear 1 (rotations per minute) |
2850 |
| no-load rotation speed gear 1 (rotations per minute) |
2850 |
| Supply |
| motor power (Watt) |
1800 |
| power supply frequency (Hertz) |
50 - 60 |
| power supply connection |
plug according CEE 7/7 |
| power supply source |
mains supply |
| power supply type |
electric |
| power supply tension (Volt) |
220 - 240 |
| Usage |
| maximum machining angle (degrees) |
60 |
| minimum pipe diameter (millimeter) |
150 |
