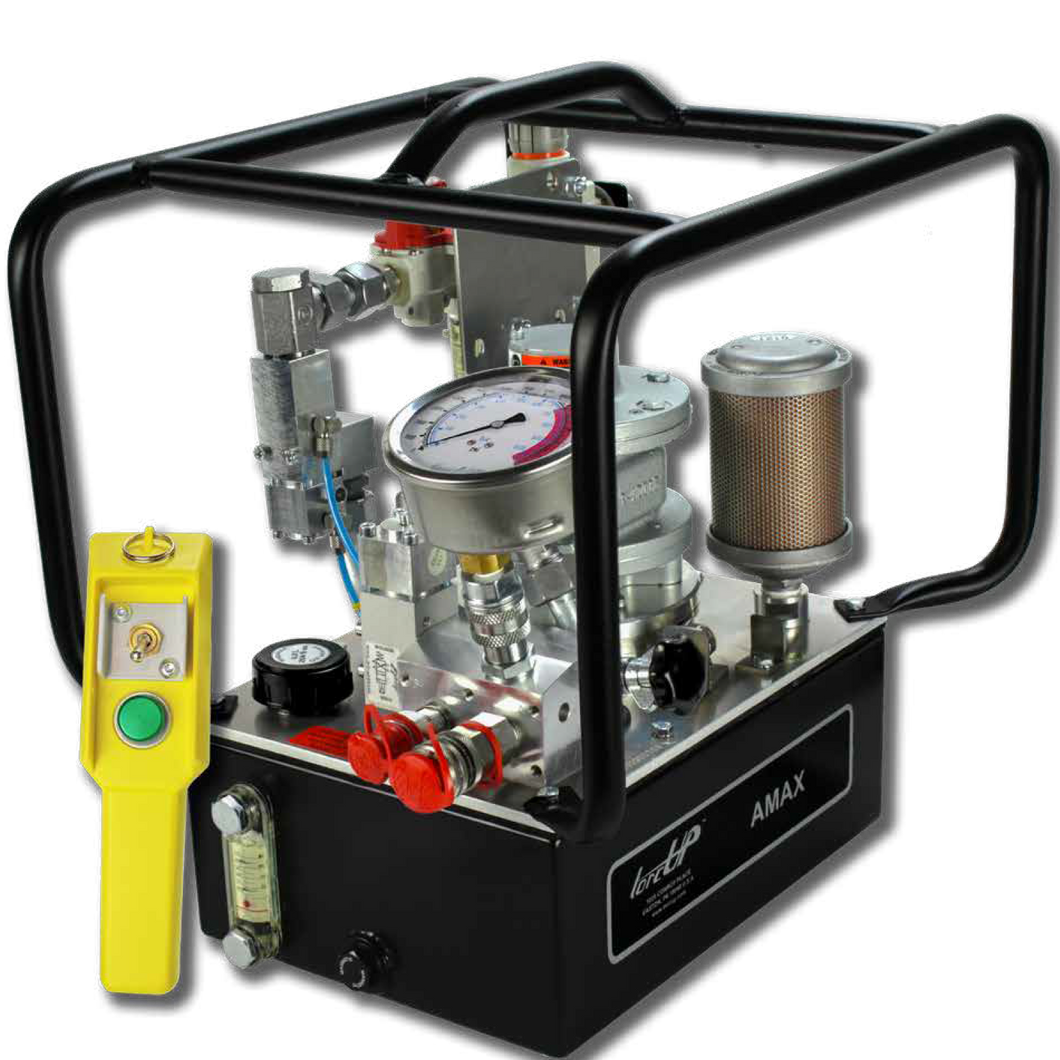

The AMAX series hydraulic torque wrench pumps were designed to be driven by pneumatic means in the harshest and most demanding environments…SAFELY! Full range adjustability up to 10,000 PSI / 700 Bar.
The AMAX series is there for you when electricity is not. In explosive environments or on applications when air is more readily available than electricity, the AMAX series pumps are another example of TorcUP’s attention to the needs of our customers. Capable of running up to four tools the AP series brings safety to your application.
- Multi-Port Operation Capable
- Air Driven 100 psi / 50 cfm
- Onboard F/R/L For Reliable Performance
- Genuine TorcUP Design
TECHNICAL DATA EMAX-230V
Reservoir Capacity: 8.4L
Valve Style: Auto Retract
Motor Specification 4 hp / 2.9 kW
Minimum Air Requirement: 55 psi @ 35 CFM
Weight : 27Kg
MAX OIL FLOW:
Stage 1 (1000psi / 70bar) 610 cu.in / min 10.0 l / min
Stage 2 (4200psi / 300bar) 145 cu.in / min 2.4 l / min
Stage 3 (10,000psi / 700bar) 70 cu.in / min 1.1 l / min
