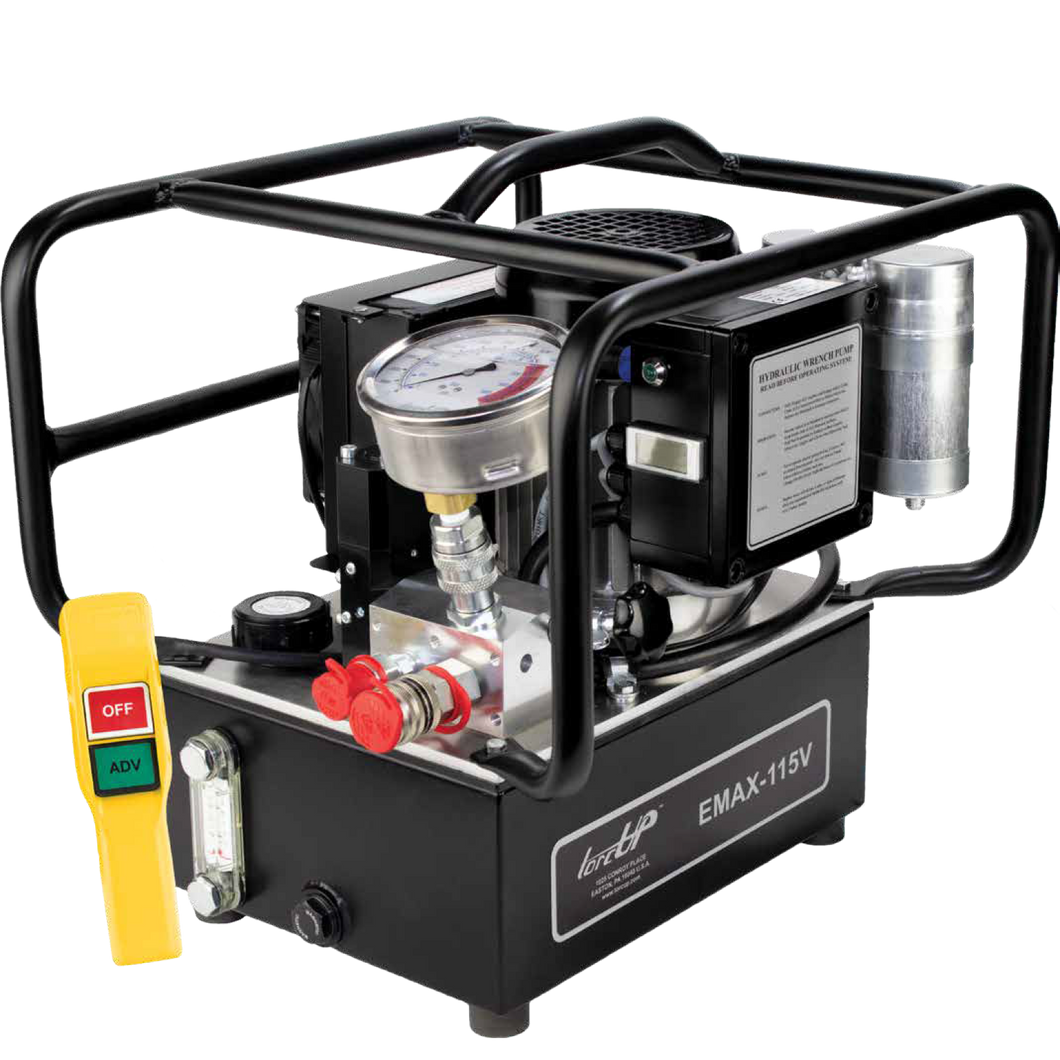

The EMAX series hydraulic torque wrench pumps were designed with on-site continuous duty cycling reliability in mind. Full range adjustability up to 10,000 PSI / 700 Bar. Manufactured to withstand harsh environments and heavy duty applications. Adjust the pressure to the desired PSI/Bar to achieve proper torque output each and every time. Whether running one tool or four, the EMAX series pumps are the power that guarantees the job will get done.
- Multi-Port Operation Capable
- Available in 115V and 230V
- Hour Meter For Maintenance Timing
- Genuine TorcUP Design
TECHNICAL DATA EMAX-230V
Reservoir Capacity: 8.4L
Valve Style: Auto Retract
Motor Specification 2.2 hp / 1.6 kW
Weight : 28Kg
MAX OIL FLOW:
Stage 1 (1000psi / 70bar) 610 cu.in/min 10.0 l /min
Stage 2 (3900psi / 270bar) 145 cu.in/min 2.4 l /min
Stage 3 (10,000psi / 700bar) 65 cu.in/min 1.1 l /min
