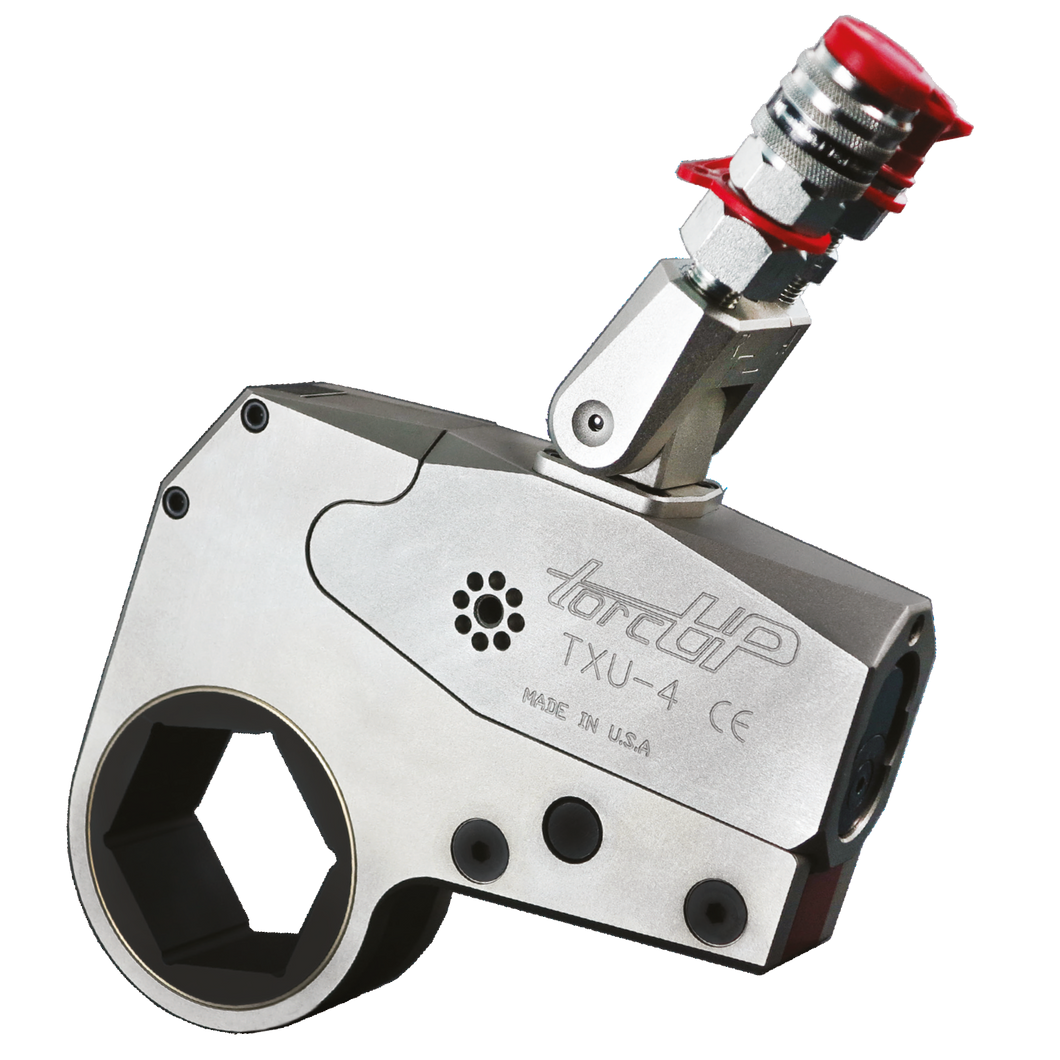

Torcup Compact Cassette Hydraulic Torque Wrenches

Torcup Compact Cassette Hydraulic Torque Wrenches

INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE Want to hire instead? Find out if we can help   Enquire here

The TXU series covers all the bases when it comes to giving you tight clearance application fitment. Not only does this tool address nut circumference issues, it also allows for shorter tool length fitment between application obstructions. With the hose swivel assembly positioned above the tool housing torque can be applied on every application with an accuracy of +/-3%.

  • Made in the USA
  • Four Models From 3199 Nm to 22361 Nm
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

Model

TXU-2

TXU-4

TXU-8

TXU-16

TXU-32

Min. Torque (lb-ft)

240

472

800

1525

3500

Max. Torque (lb-ft)

2320

4786

8800

16300

38100

Min. Torque (Nm)

274

564

1033

1917

4476

Max. Torque (Nm)

3199

6584

12055

22361

52220

Head Weight (kg)

1.8

3.1

5.7

7.3

12.3

Link Weight (kg)

1.0 – 1.5

2.4 – 3.4

5.5 – 6.5

9.5 – 13.0

13.0 – 17.9

Length 1 (mm)

163.8

199.9

258.6

328.4

401.3

Length 2 (mm)

152.4

167.1

186.4

208.2

236.5

Width 1 (mm)

31.8

41.4

52.1

63.5

82.3

Width2 (mm)

55.6

57.4

Radius Range (mm)

9.6 – 15.0

10.5 – 18.7

14.2 – 21.0

17.1 – 25.9

23.6

Height 1 (mm)

86.3

125.2

157

192.5

241.3

Height 2 (mm)

28.2

33.0

Hex range from

19mm | 3/4”

27mm | 1”

49mm | 1 7/8”

55mm | 2 3/16”

80mm | 3 1/8”

Hex range to

65mm | 2 9/16”

80mm | 3 1/8”

120mm | 4 5/8”

135mm | 5 5/16”

205mm | 8”
