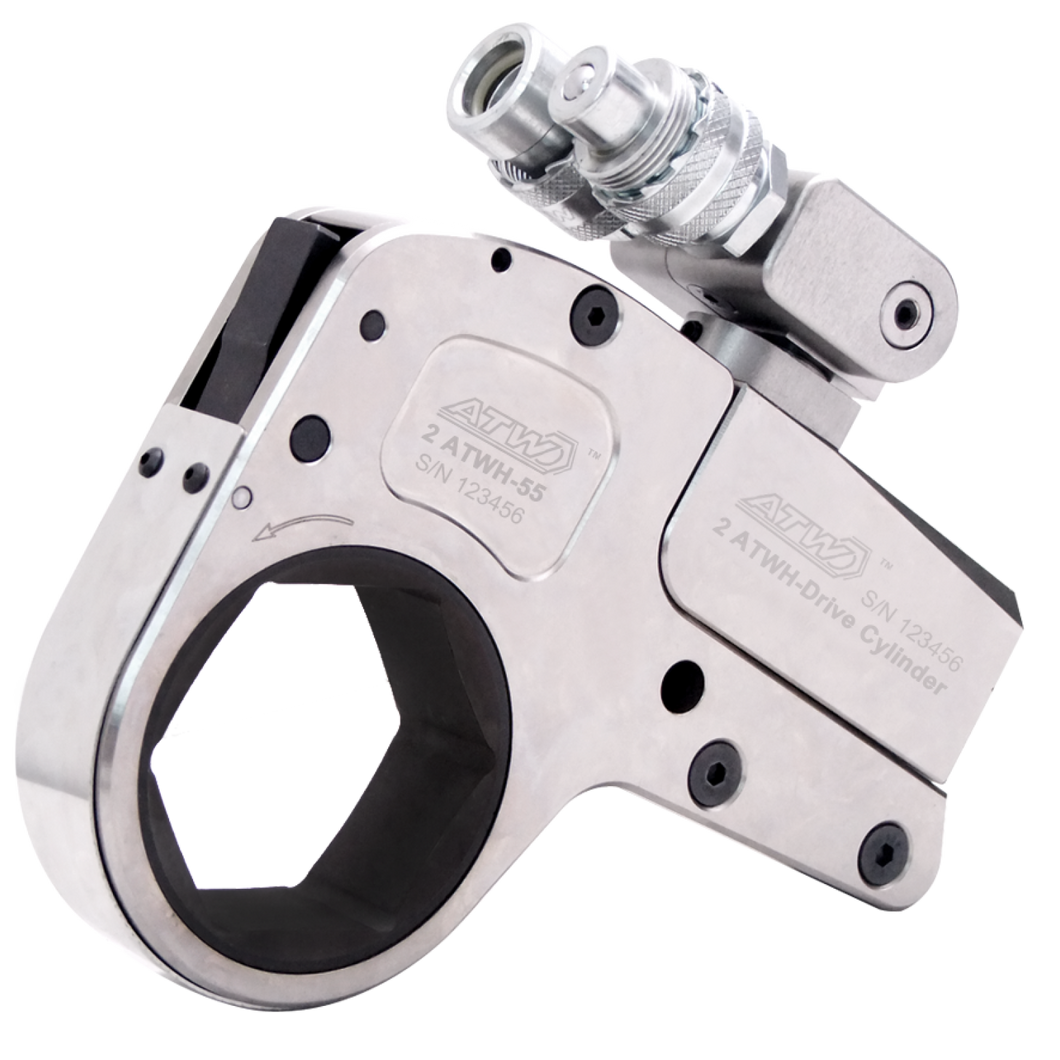

ATWH Series Compact Cassette Hydraulic Torque Wrenches

ATWH Series Compact Cassette Hydraulic Torque Wrenches

Regular price INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE Want to hire instead? Find out if we can help Enquire here

Working pressure 10000 psi max; accuracy ±3%
5 models with the range from 164-32396 ft.lbs
360°uni-swivel allows for free operation of the wrench even in confined spaces
In Line nut reaction for better accuracy and operation
Compact design with longer reaction pad for improved durability
Compact design using composite materials to give improved strength
The new locking coupler ensures the oil always flows to the wrench head

Model	Torque Range	Nut Sizes	Cassette Head Weight	Cassette Link Weight	Dimensions (mm)
Model	Nm	mm	kg	kg	L	H1	H2	W
08ATWH	113~1128	30~36	0.7	0.8	150	115	77	26
2ATWH	223~2238	19~55	0.9	1.5	186	132	95	32
2ATWH	232~2321	60	0.9	1.5	186	135	98	32
3ATWH	440~4400	34~65	1.3	2.6	238	173	124	38
4ATWH	552~5526	34~65	1.6	3.4	251	176	127	42
4ATWH	610~6108	70~80	1.6	3.4	256	186	137	42
8ATWH	1044~10440	41~95	3.1	6.3	308	211	154	53
8ATWH	1123~11235	100~105	3.1	6.3	308	220	163	53
14ATWH	1852~18521	50~117	4.8	11.4	378	252	200	64
18ATWH	2601~26011	75~135	6	12.8	385.9	264.8	217.8	70.3
30ATWH	4188~41882	85~155	10.5	20.5	460	300	253	85
30ATWH	4459~44593	160~175	10.5	20.5	460	313	266	85
