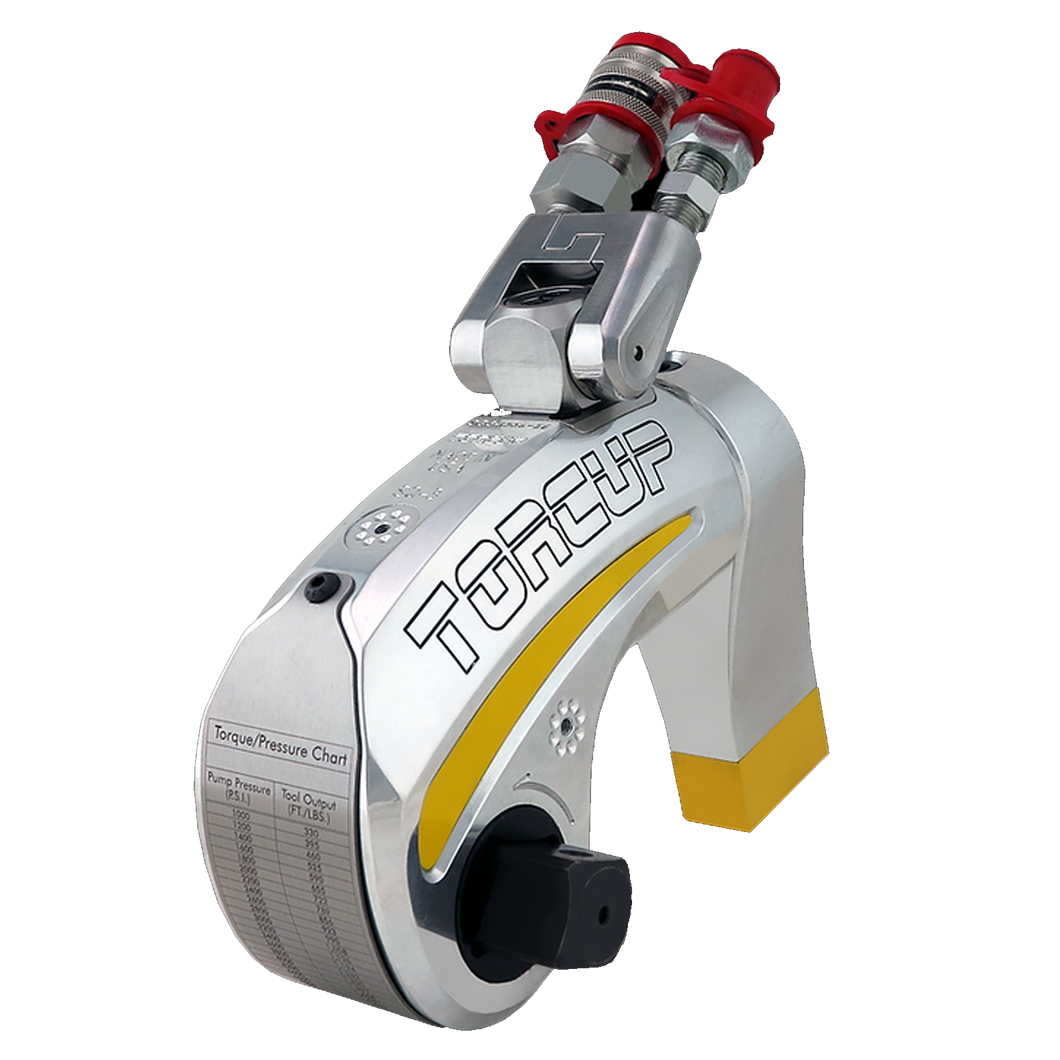

Torcup Square Drive Hydraulic Torque Wrenches

Torcup Square Drive Hydraulic Torque Wrenches

INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE Want to hire instead? Find out if we can help   Enquire here

The SQ series is a masterpiece of style, capability and durability. Now offering our perfected Uni-Swivel design, the SQ can adapt to any job site application. Within this tool, you will find our proven “Three Moving Part” technology which provides application accuracy of +/-3%. Engineered to master any application, the SQ matches its amazing looks with the safest and most reliable results.

  • Made in the USA
  • Four Models From 2023 Nm to 15062 Nm
  • Every Unit Calibrated In ISO17025 Laboratory
  • Manufactured With AQ Certified Alloys
  • Genuine TorcUP Design

Model

SQ-1

SQ-3

SQ-5

SQ-10

Square drive (in)

3/4”

1”

1 ½"

1 ½"

Min. Torque (lb-ft)

165

350

540

990

Max. Torque (lb-ft)

1460

3490

5700

11000

Min. Torque (Nm)

173

412

671

1291

Max. Torque (Nm)

2023

4805

7825

15062

Output accuracy

+/-3%

Tool Weight (kg)

2.5

5.0

8.4

14.5

Height (mm)

95.5

124.7

153.6

186.4

Length 1 (mm)

124.7

164.5

201.9

250.1

Length 2 (mm)

164.3

215.3

271.7

326.3

Radius (mm)

25.1

33.2

39.8

54.1

Width 1 (mm)

50.8

66.8

79.5

100.3
