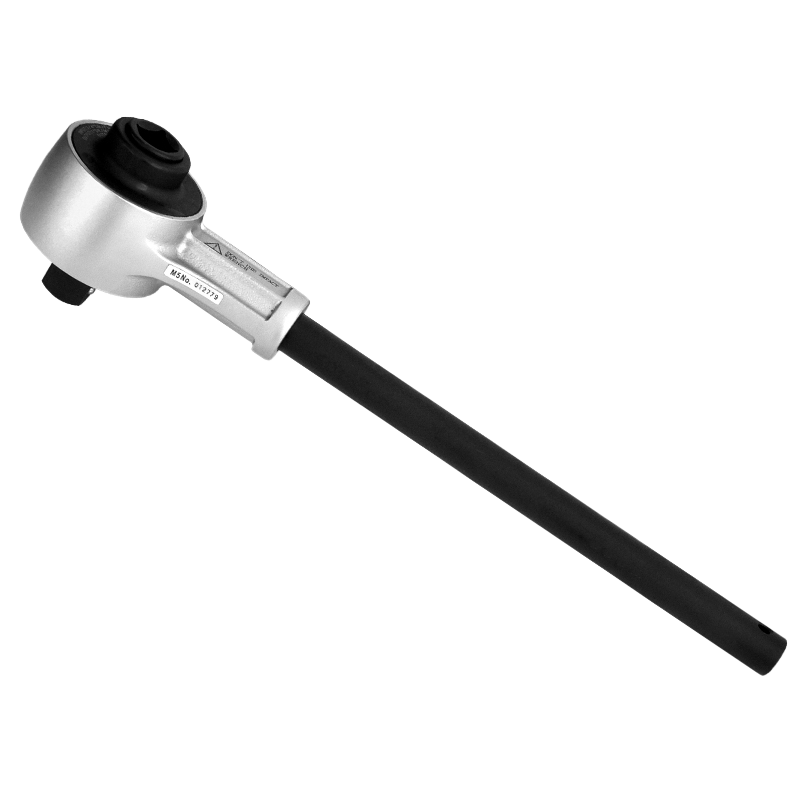

Matatakitoyo MT Torque Multiplier
Matatakitoyo MT Torque Multiplier

Matatakitoyo MT Torque Multiplier

INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE

Features

  • Direction & Accuracy : C.W. ± 6%
  • Torque Ratio : low energy input with high torque output ensures operator safety.

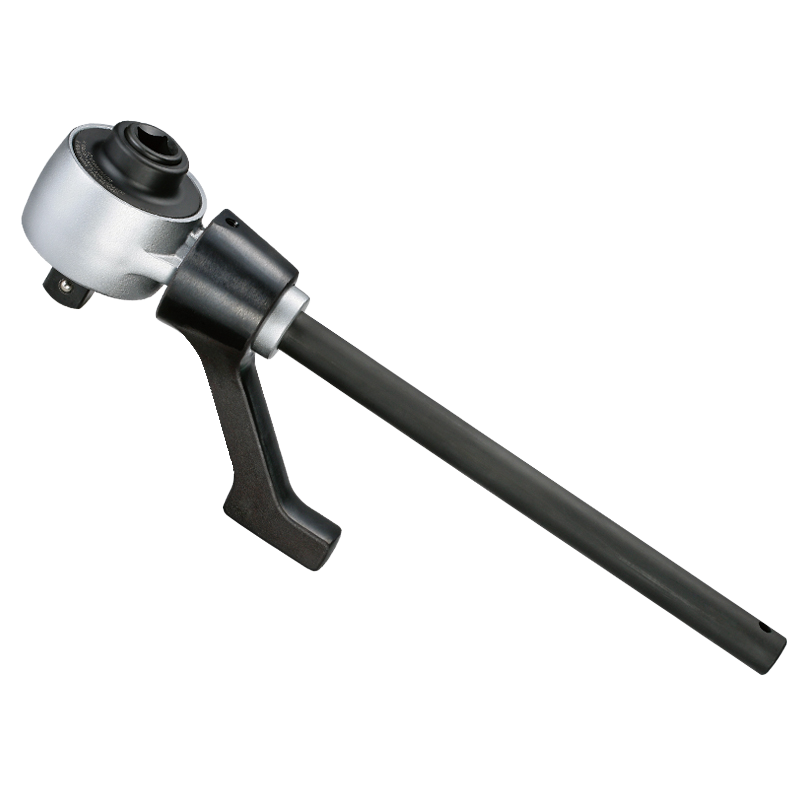

  • Supplied with straight reaction arm, angled reaction arm, and carry case.

TEM NO. Torque Ratio Range (max) Input Square Output Square W H H1 L
Input Output
MT-1000 1:3 500 Nm 365 ft.lb 1500 Nm 1100 ft.lb 1/2" 3/4" 73.8 85.0 125.0 425 3.09
MT-2000 1:3 1000 Nm 730 ft.lb 3000 Nm 2200 ft.lb 3/4" 1" 92.2 113.3 160.0 501 6.49
