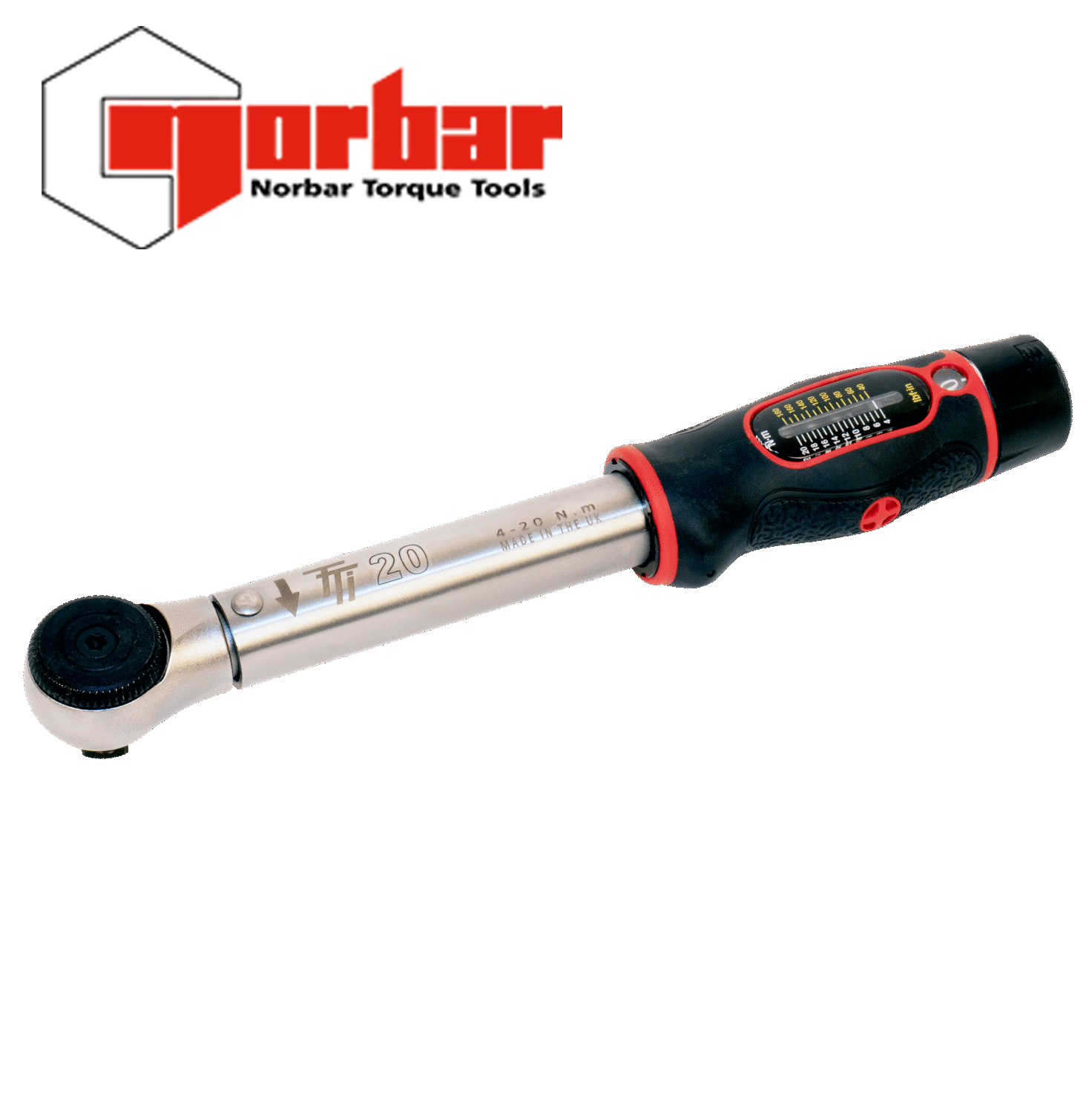

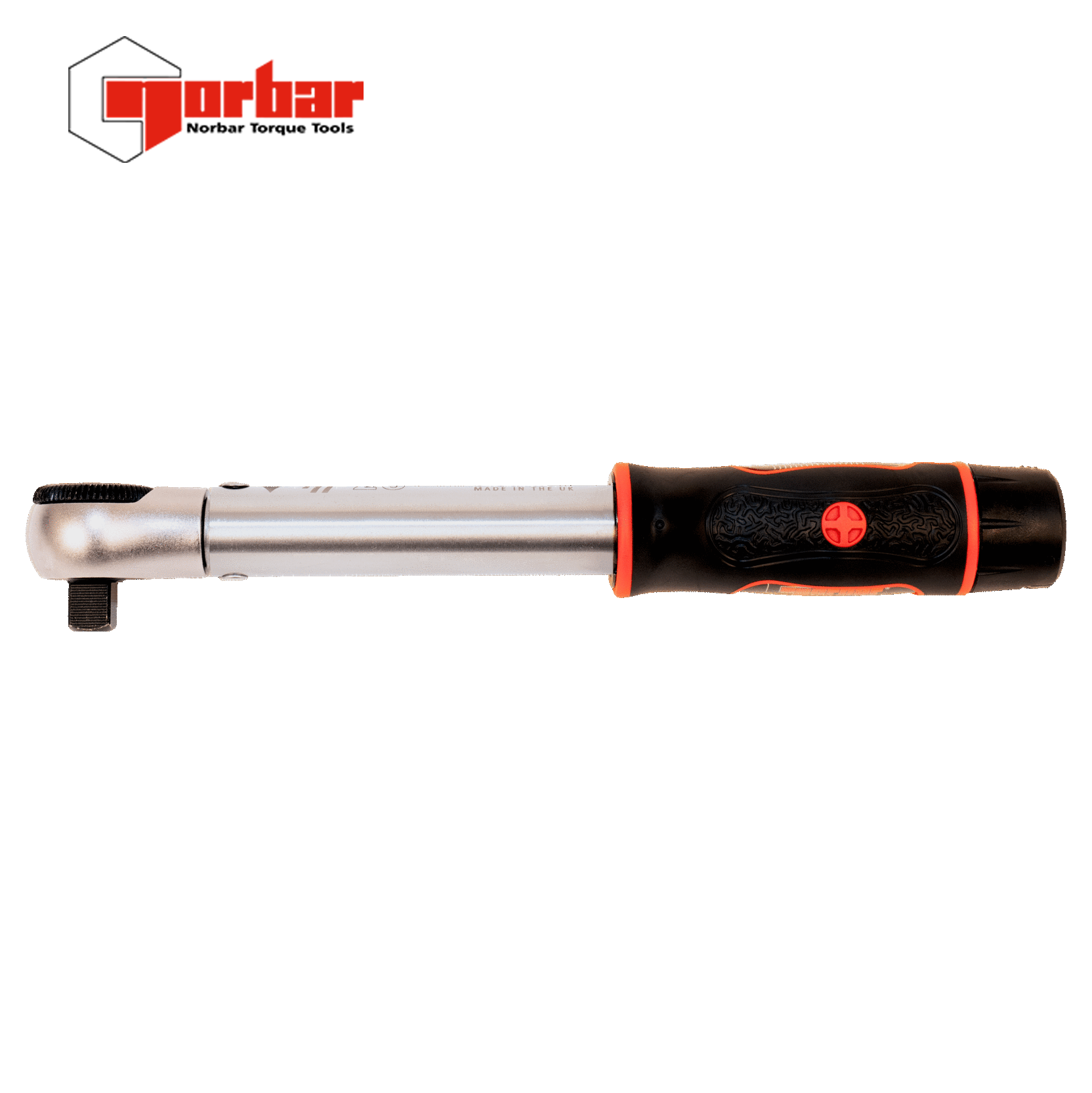

Norbar TTi Torque Wrenches 1/4" - 3/8" Dr, 4-20Nm
Norbar TTi Torque Wrenches 1/4" - 3/8" Dr, 4-20Nm
Norbar TTi Torque Wrenches 1/4" - 3/8" Dr, 4-20Nm
Norbar TTi Torque Wrenches 1/4" - 3/8" Dr, 4-20Nm

Norbar TTi Torque Wrenches 1/4" - 3/8" Dr, 4-20Nm

Regular price INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE Want to hire instead? Find out if we can help   Enquire here

Features

  • Durable, reliable and accurate mechanism

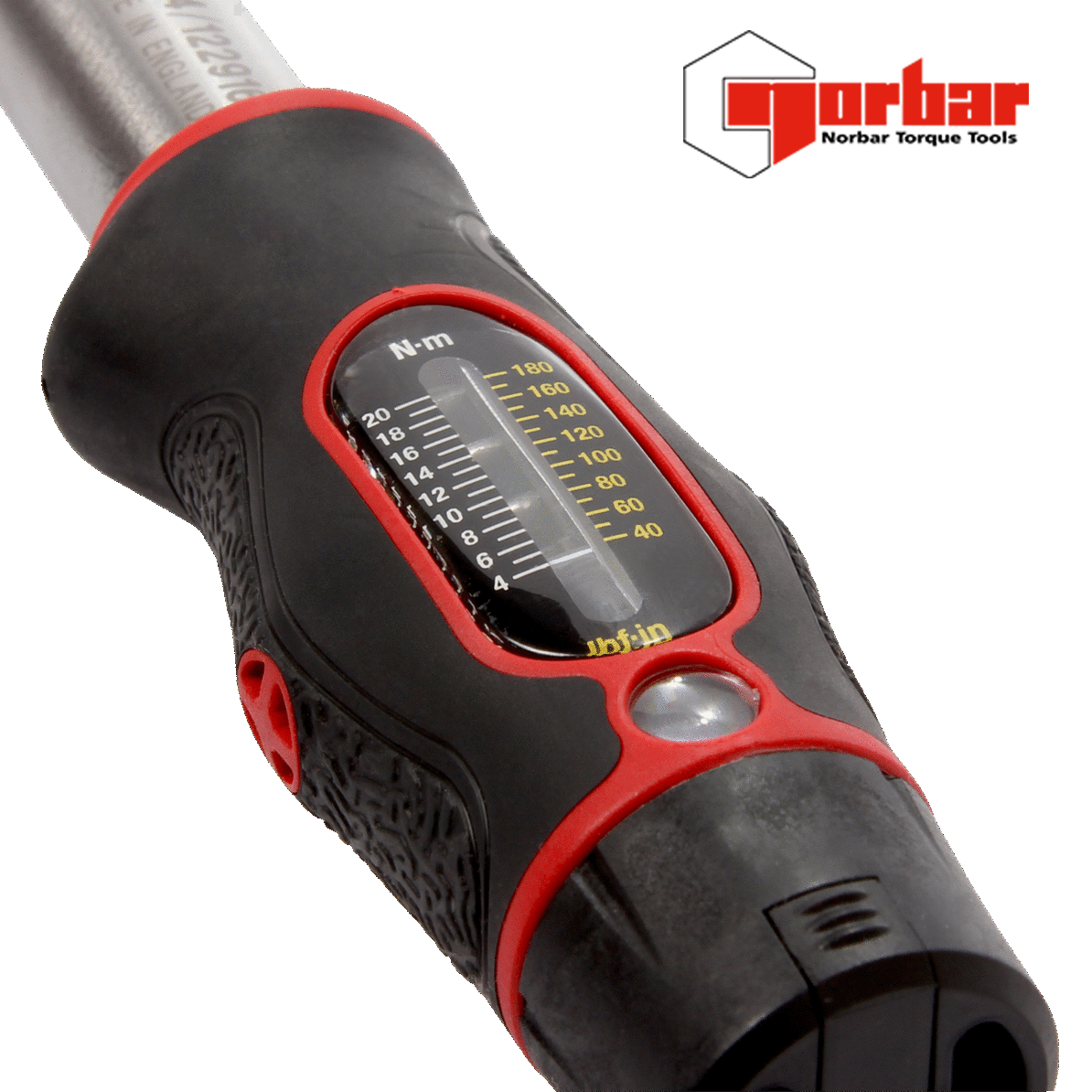

  • Micrometer scale for simple and error free setting (on dual scale wrenches, the micrometer increment applies to the N·m scale)
  • Quick and light adjustment: adjustment over the entire scale can quickly be achieved and with minimal effort in approximately ten complete turns
  • Comfortable, durable handle constructed using two materials; a base material for strength overlaid with a soft feel grip for comfort and slip resistance
  • The handle material and lens resist chemicals in common usage in the automotive, aviation and industrial environments
  • Clicking system triggers a tactile and audible signal
  • All tools feature a lock to prevent accidental adjustment of set torque

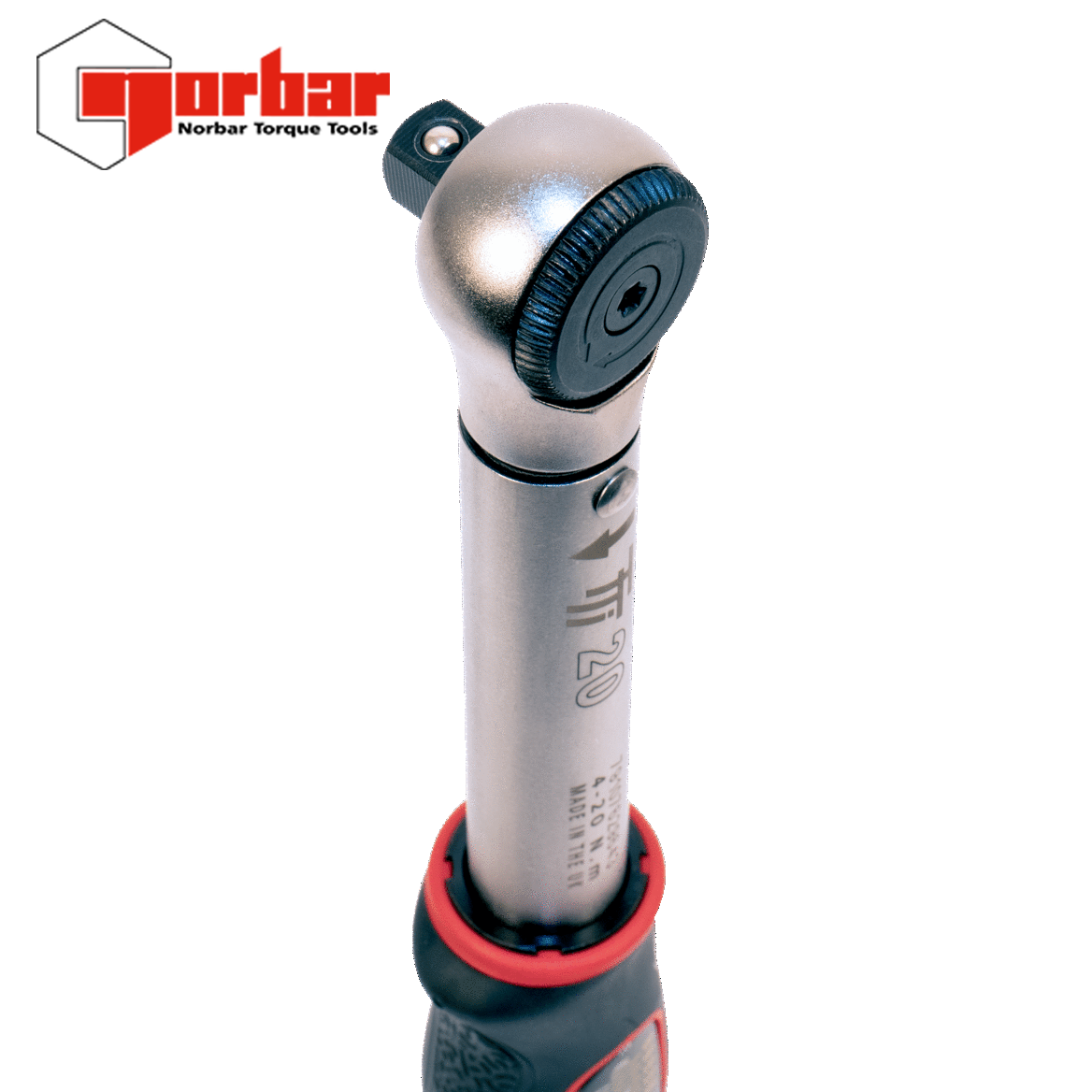

  • Reversible ratchet head
  • Handle centre or calibration force point marked on handle
  • Accuracy to ±3% meets the requirements of ISO 6789-1:2017
  • Supplied with a Declaration of Conformance
  • Made in the UK

 Model

 Torque range

N·m

 Torque range
Lbf-ft
 Square drive
inch
Length A
mm

 Distance screw end

mm

Calibration length

mm

Head width

mm

Head height

mm

 Head working height

mm

 Weight
Kg
TTi-13830 4-20 1/4 232 217 166 30 31 20 0.5
TTi-13831 4-20 3/8 232  217 166 30 31 20 0.5
TTi-13832 4-20 1/4 232 217 166 30 31 20  0.5
TTi-13833 4-20 3/8 232 217 166 30 31 20 0.5
TTi-13834
35-180 1/4 232 217 166 30 31 20 0.5
TTi-13835
35-180 3/8 232 217 166 30 31 20 0.5
