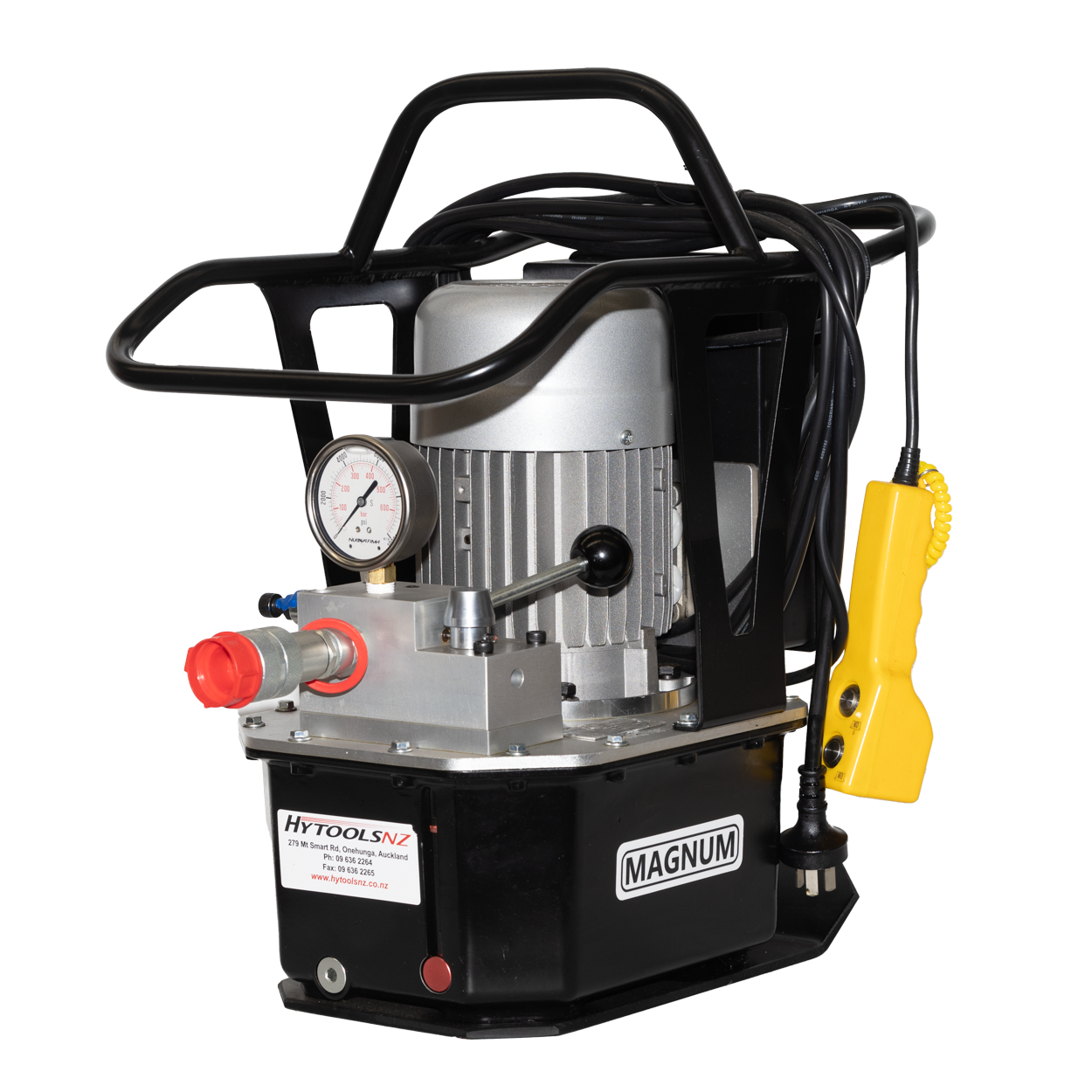

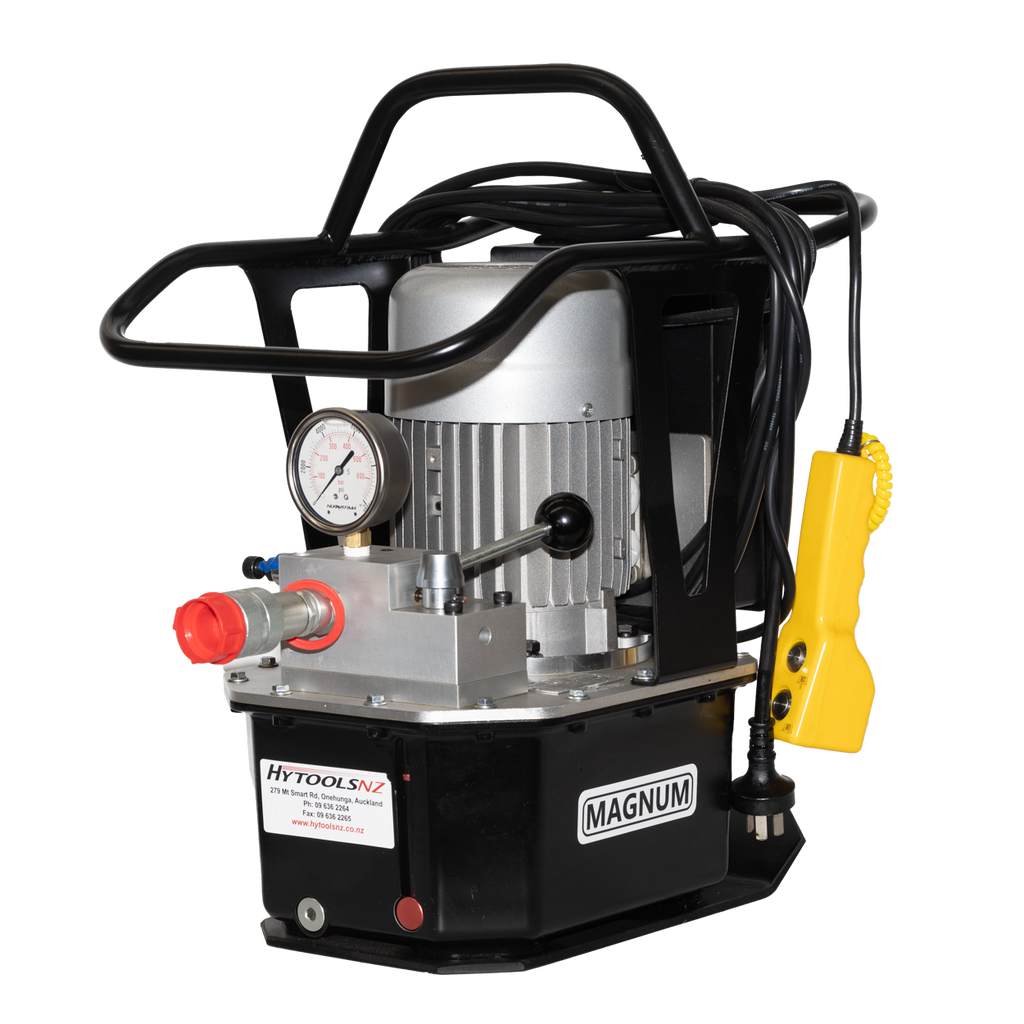

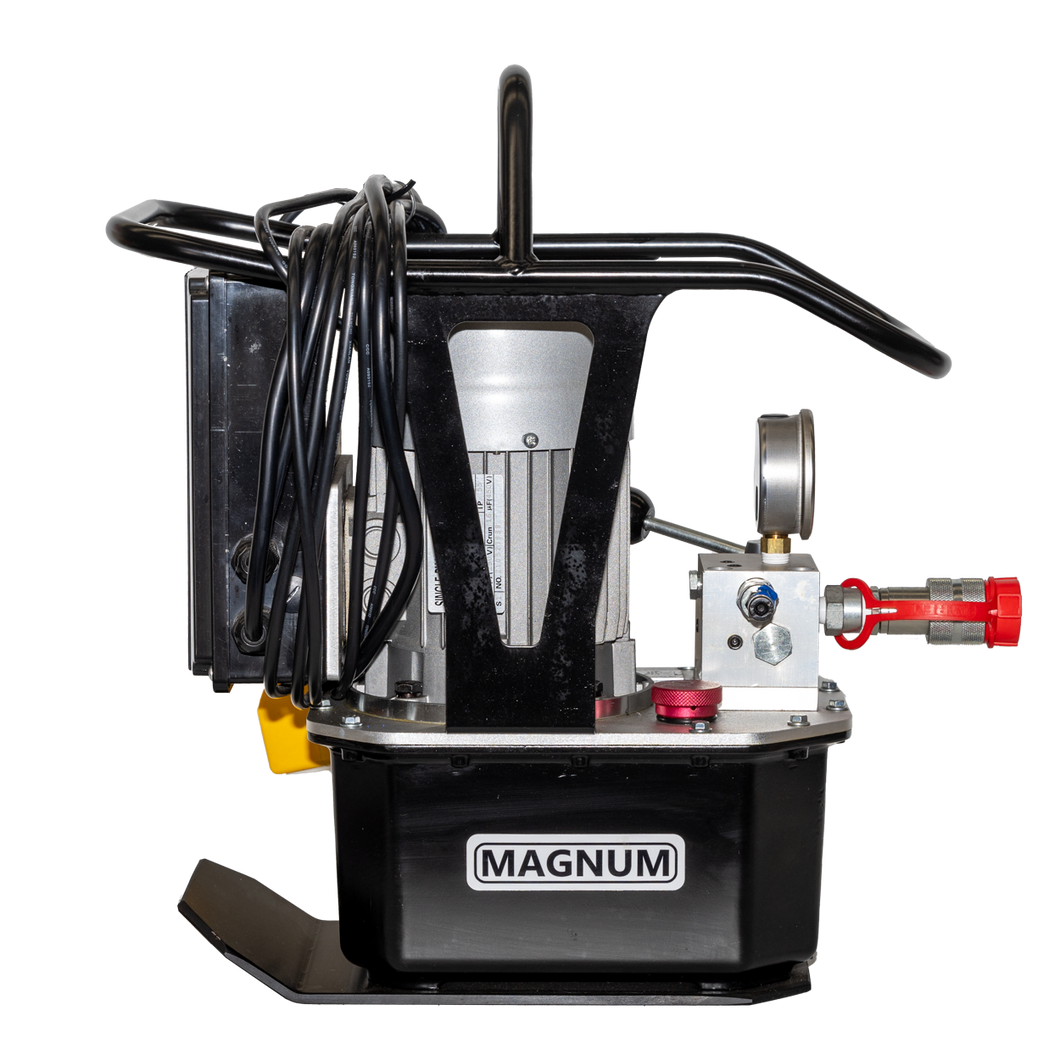

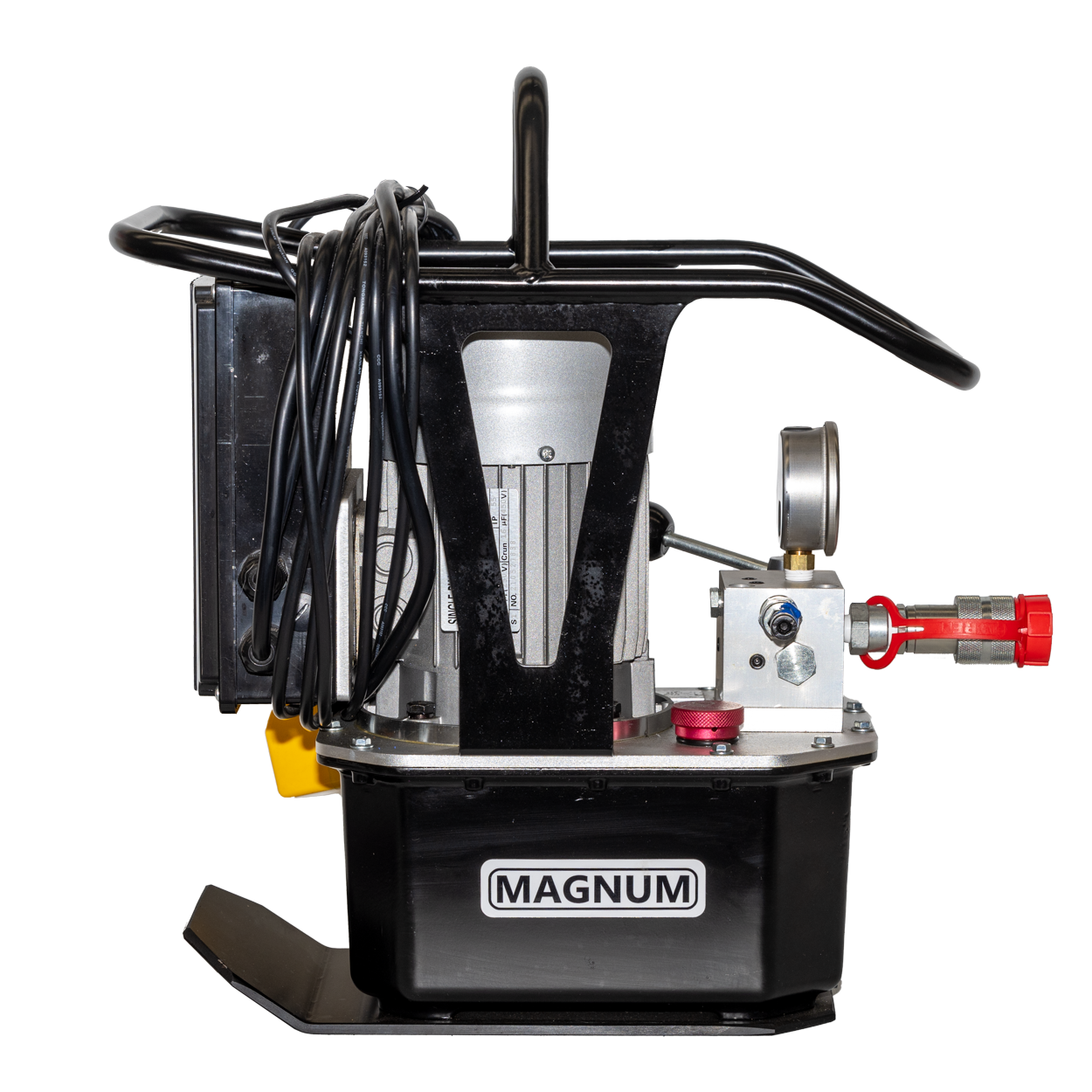

MAGNUM 4L ELECTRIC HYDRAULIC JACKING PUMP - MAGMP04

MAGNUM 4L ELECTRIC HYDRAULIC JACKING PUMP - MAGMP04

Regular price

Enquire here

Features

Valve options: Single acting, double acting & solenoid operated
Electric and pneumatic options available
Larger volume three-phase options also available
4L capacity
Power Output: 0.37KW
Max. Pressure: 10,000psi
Output Pressure: Stage 1: 942psi Stage 2: 10,000psi
Flow Rate: Stage 1: 4 L/min Stage 2: 0.6 L/min
Voltage: 220v, 50Hz & 380v, 50Hz

Model	Valve Block	Oil Capacity	Flow Rate Litre/Min		Max. Pressure PSI (Bar)	Power Input	Weight Kg
Model	Valve Block	Oil Capacity	Low	High	Max. Pressure PSI (Bar)	Power Input	Weight Kg
MAGMP04SA	Single Acting	4.0L	4.0L	0.6L	10,000 (700)	230V Single Phase	22
MAGMP04DA	Double Acting	4.0L	4.0L	0.6L	10,000 (700)	230V Single Phase	22
MAGMP08SA	Single Acting	8.0L	5.5L	0.8L	10,000 (700)	230V Single Phase	24
MAGMP08DA	Double Acting	8.0L	5.5L	0.8L	10,000 (700)	230V Single Phase	24
