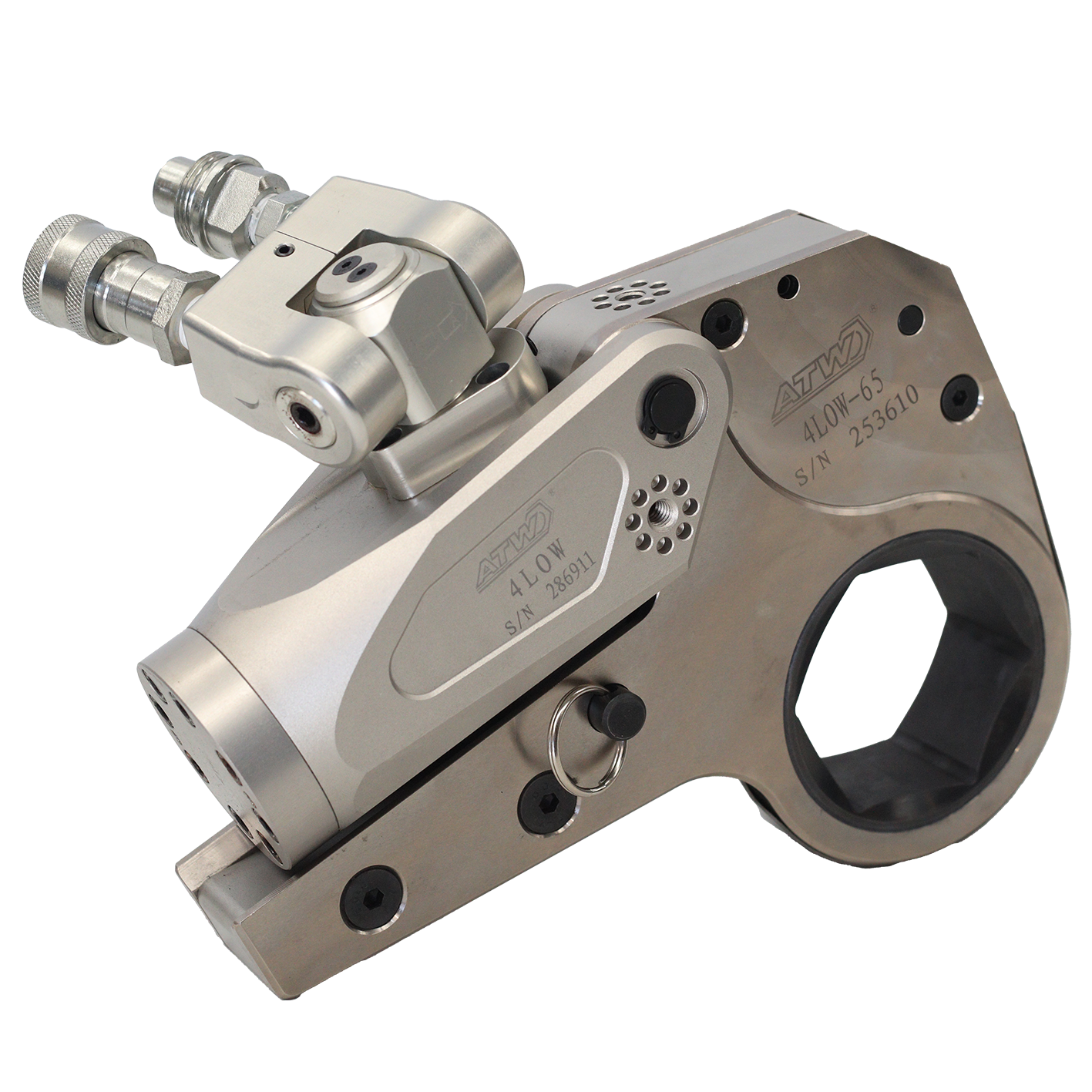

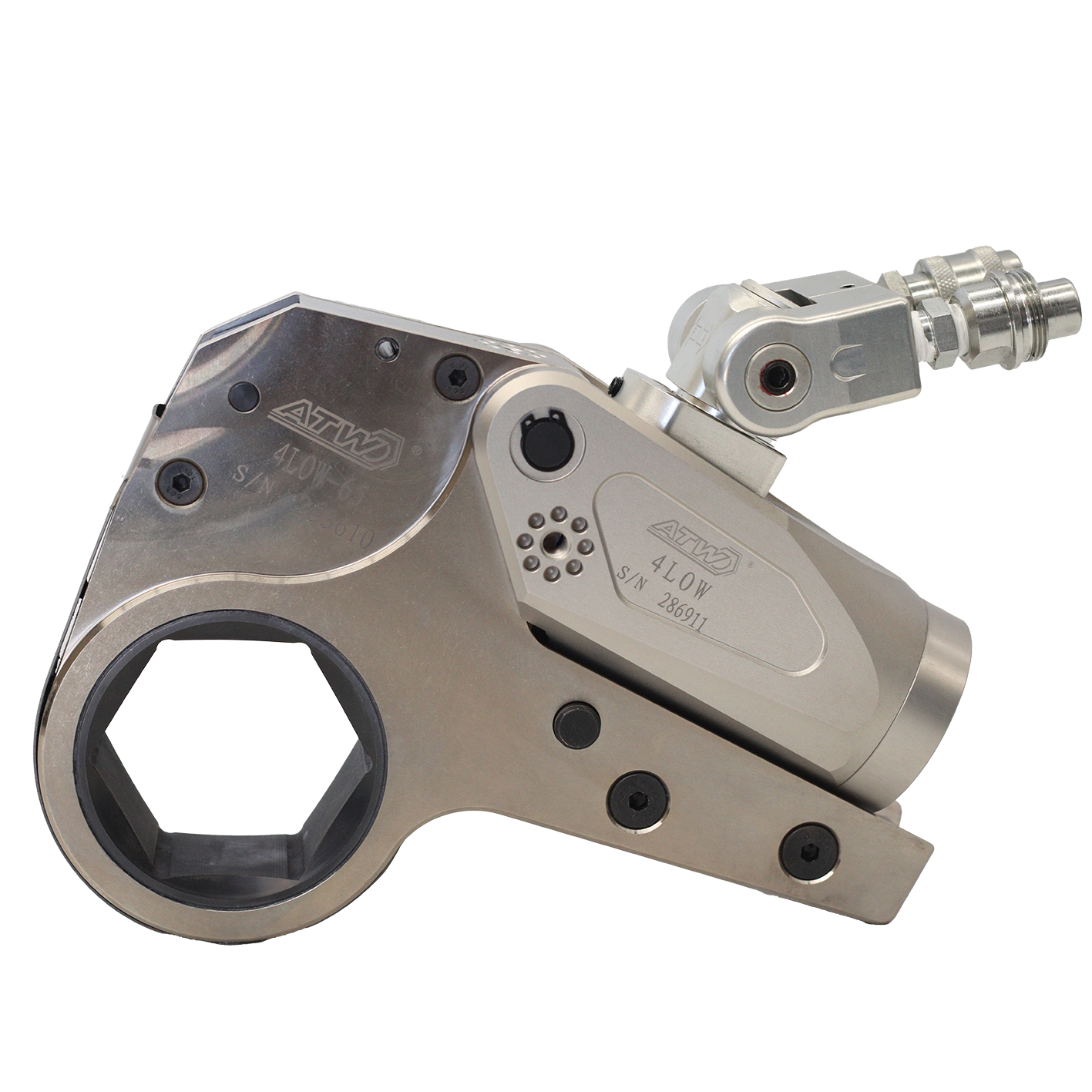

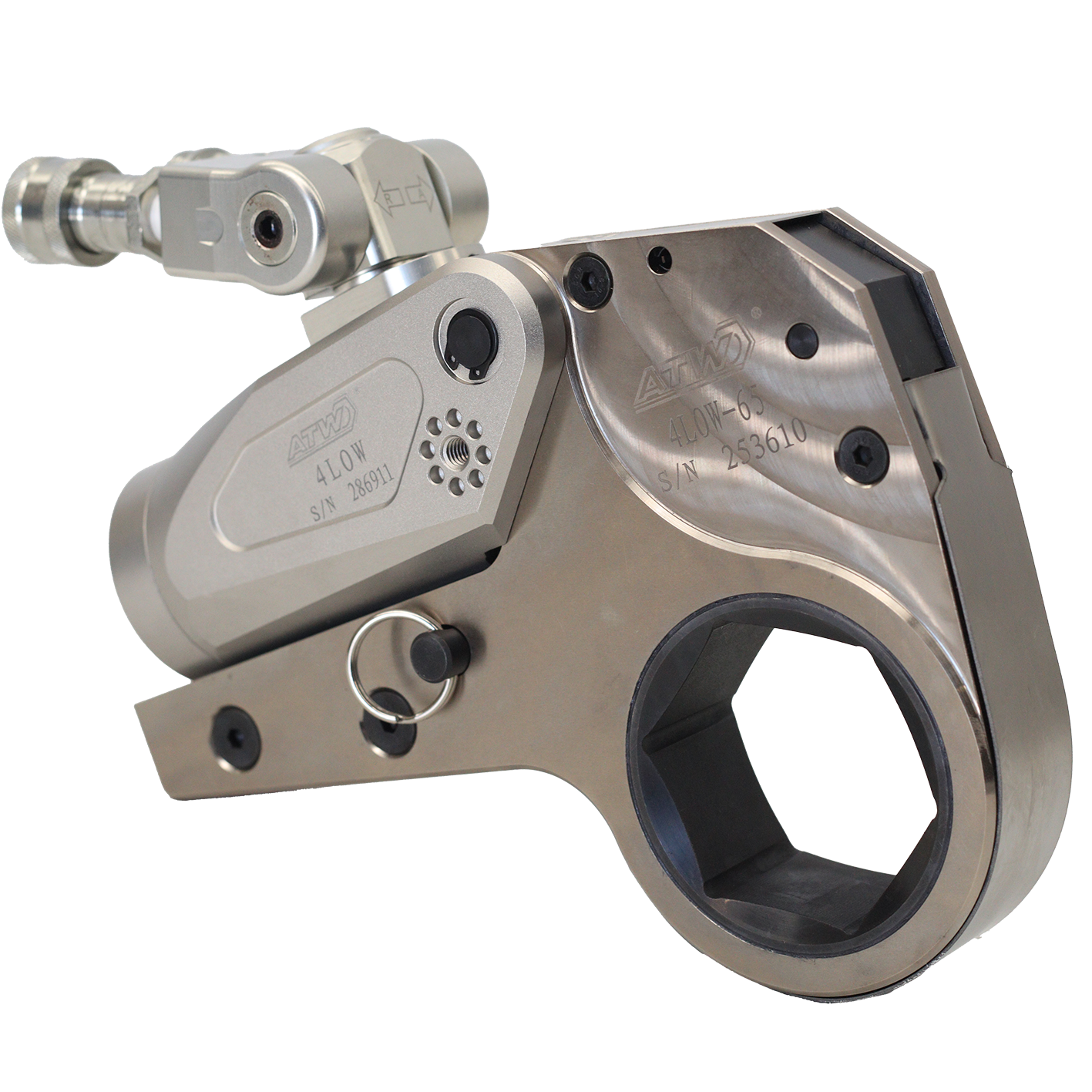

Hydraulic Cassette Torque Wrenches from American Torque Wrench ATW Series are designed to both tighten and loosen nuts requiring high torque. Suitable for continuous operation at maximum pressure. A 2-peice unit - Hydraulic cassette head & cassette link. The Cassette head can be used with any size cassette link of the same series.



  • Max. pressure 10,000 PSI
  • Repeatable accuracy ±3%
  • Durable structure, aluminium-titanium alloy drive cylinder
  • 360° x 180° uni swivel couplings
  • Low profile with minimum wall thickness
  • Pressure relief valve prevents over pressure
  • Various hex adapters, reducers & reaction arms available



Model

Hex Size (mm)

Torque Range (Nm)

Torque Range (lb-ft)

Cassette Head Weight (kg)

Cassette Link Weight (kg)

2LOW

22~55

232~2328

171~1717

1

1.6

60

241~2414

177~1780

1.7

4LOW

32~65

585~5848

431~4313

2

4.4

70~80

647~6474

477~4774

4.6

8LOW

41~95

1095~10938

807~8067

3.3

8

100~105

1175~12017

866~8863

8.4

14LOW

50~117

1852~18521

1366~13660

5.5

11.6

18LOW

75~135

2601~26011

1918~19185

6

12.8

30LOW

110~155

4188~41882

3088~30890

11.4

29

160~175

4459~44593

3288~32890

30

Dimensions (mm)

Model

L

L*

H1

H2

W1

W2

2LOW

186.1

195.4

125.9

102.3

32

51

128.5

105

4LOW

241

258

177

135.7

42

66

246

263

187

145.7

8LOW

294

304

207

169

53

83

301

311

216

178

14LOW

361

N/A

239

204

64

99

18LOW

364.3

268.7

230.7

70

111

30LOW

430

303

272

85

131

441

315

285
