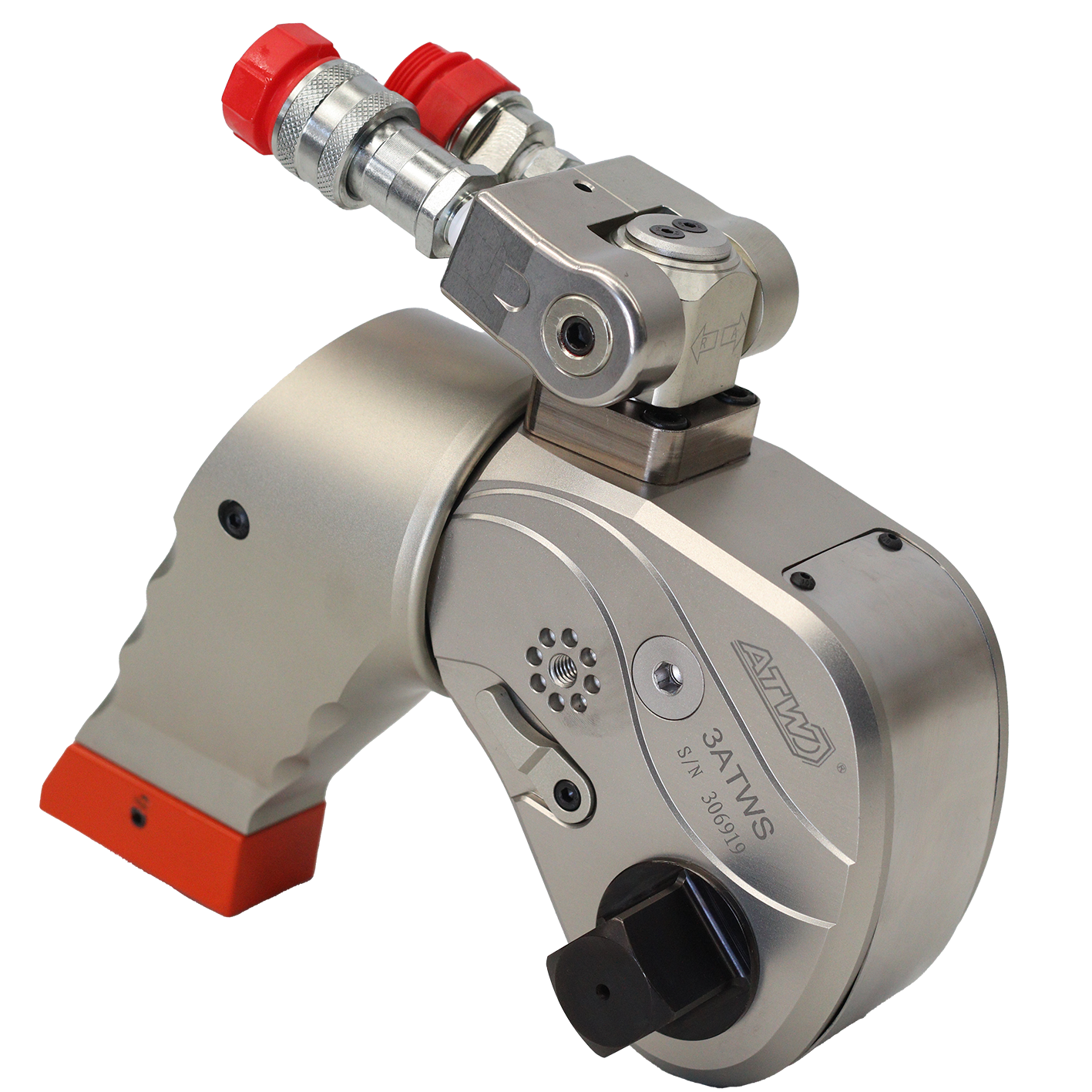

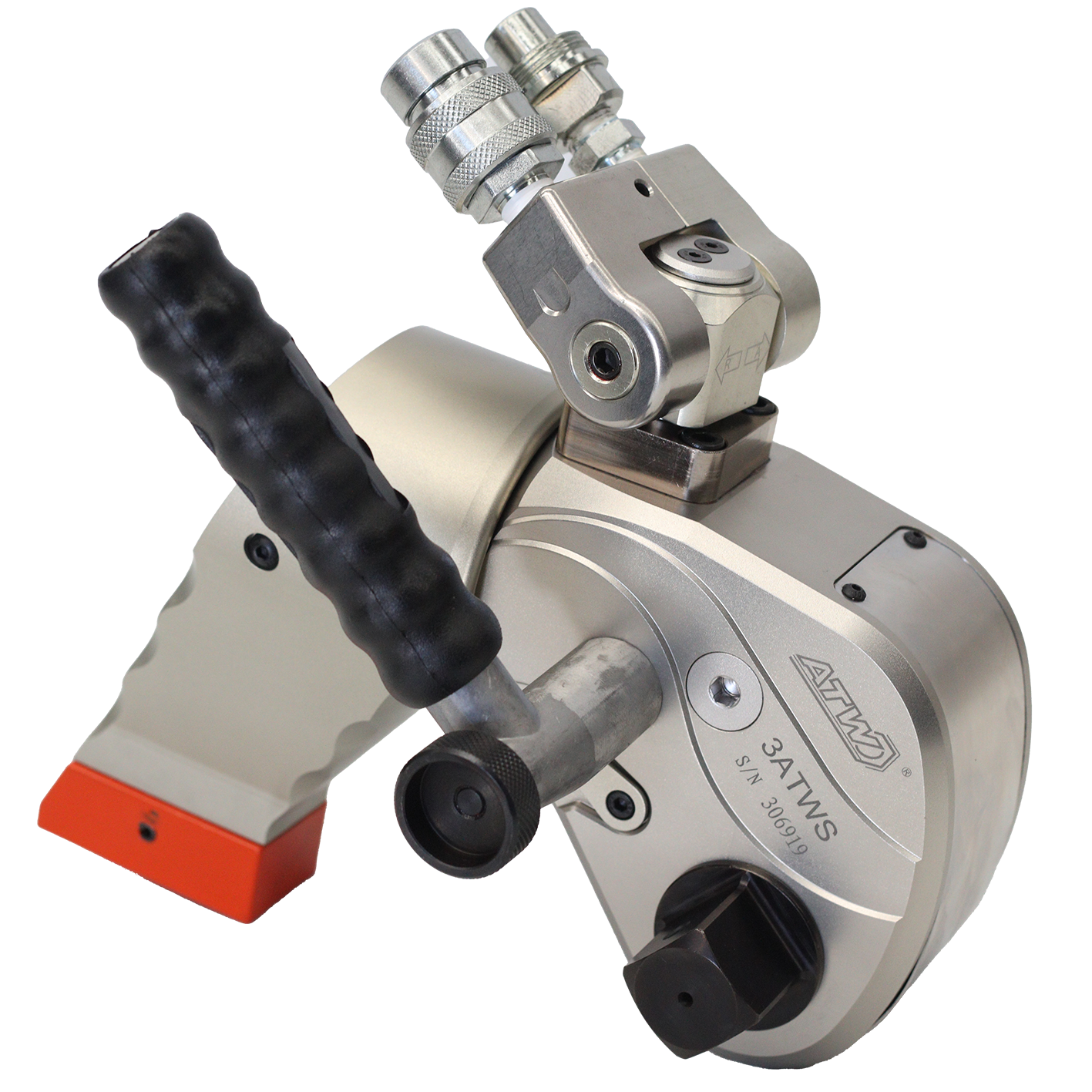

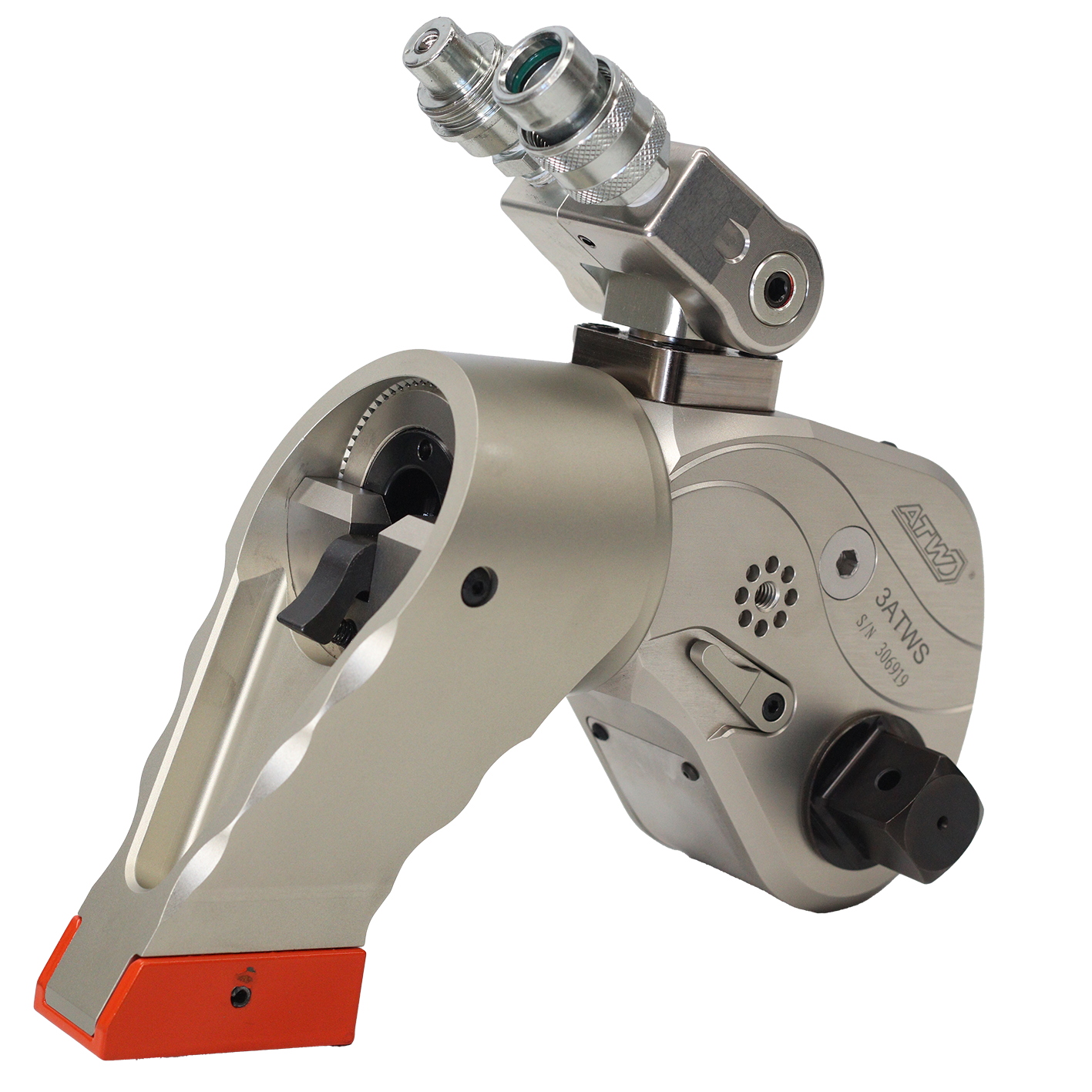

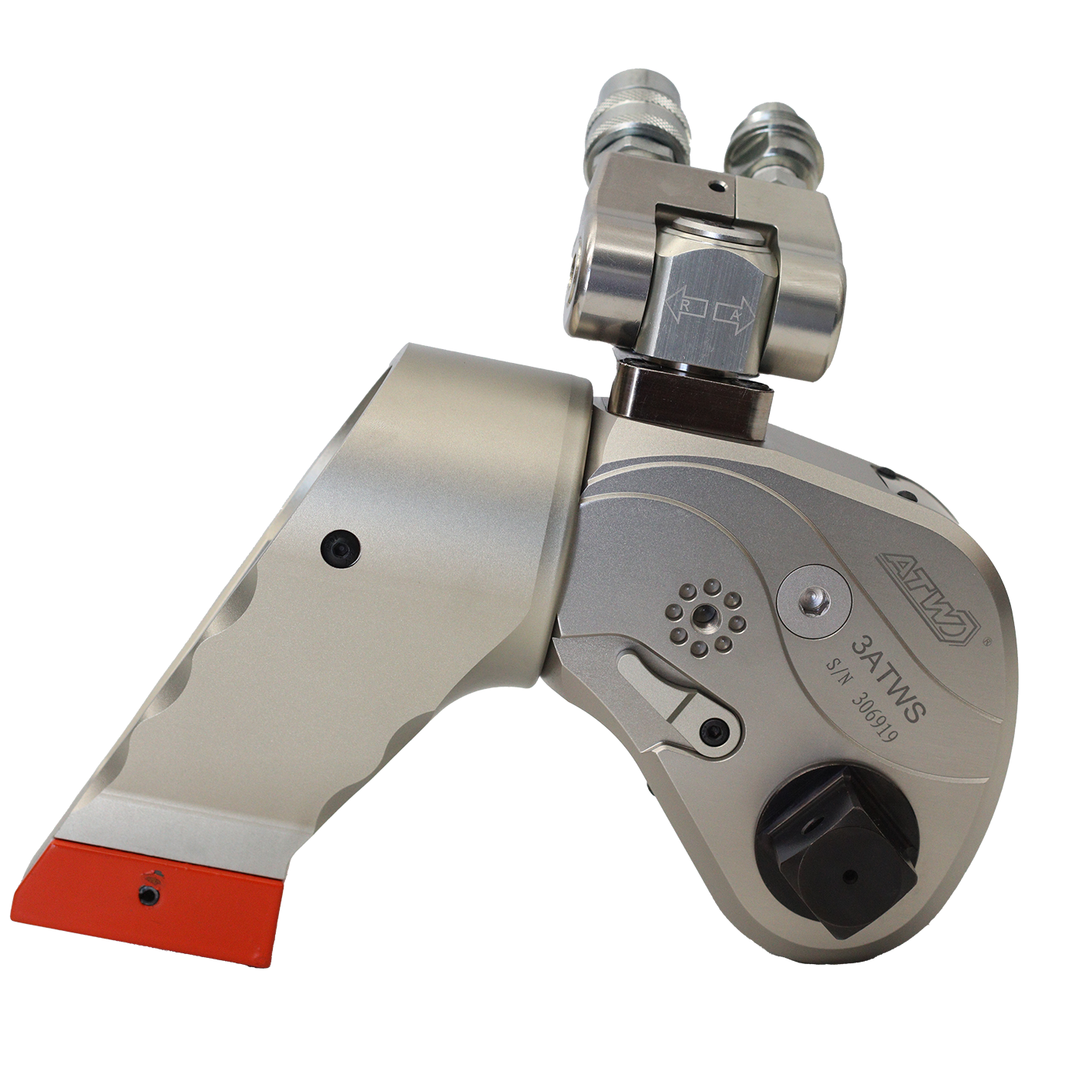

Hydraulic Square Drive Torque Wrenches from American Torque Wrench ATW Series are designed to both tighten and loosen nuts requiring high torque. Suitable for continuous operation at maximum pressure.



  • Max. pressure 10,000 PSI
  • Repeatable accuracy ±3%
  • 360° x 180° uni swivel couplings
  • Heavy duty aluminium-titanium composite light body
  • 360°adjustable reaction arm with safety lock feature
  • Easily replaceable square and hexagon drive adapters
  • Lockup release lever
  • Rection arm variations available



Model

Square Drive

Min. Torque (Nm)

Max. Torque (Nm)

Min. Torque (lb-ft)

Max. Torque (lb-ft)

1ATW

3/4"

182

1822

134

1344

3ATW

1"

445

4440

328

3278

5ATW

1½"

742

7416

547

5470

8ATW

1½"

1062

10617

783

7831

10ATW

1½"

1528

15283

1127

11272

25ATW

2½"

3421

34201

2523

25226



Dimensions (mm)

Model

Weight (kg)

L1

L2

H1

H2

H3

H4

R1

R2

1ATW

2.5

136

186

50

80

98

131

26

99

3ATW

5.0

170

244

68

105

128

206

34

136

5ATW

8.2

204

285

80

132

152

230

41

150

8ATW

10.9

220

313

90

142

167

244

47

175

10ATW

15.0

245

352

103

155

180

260

51

183

25ATW

34.9

323

463

137

203

247

297

66

199
