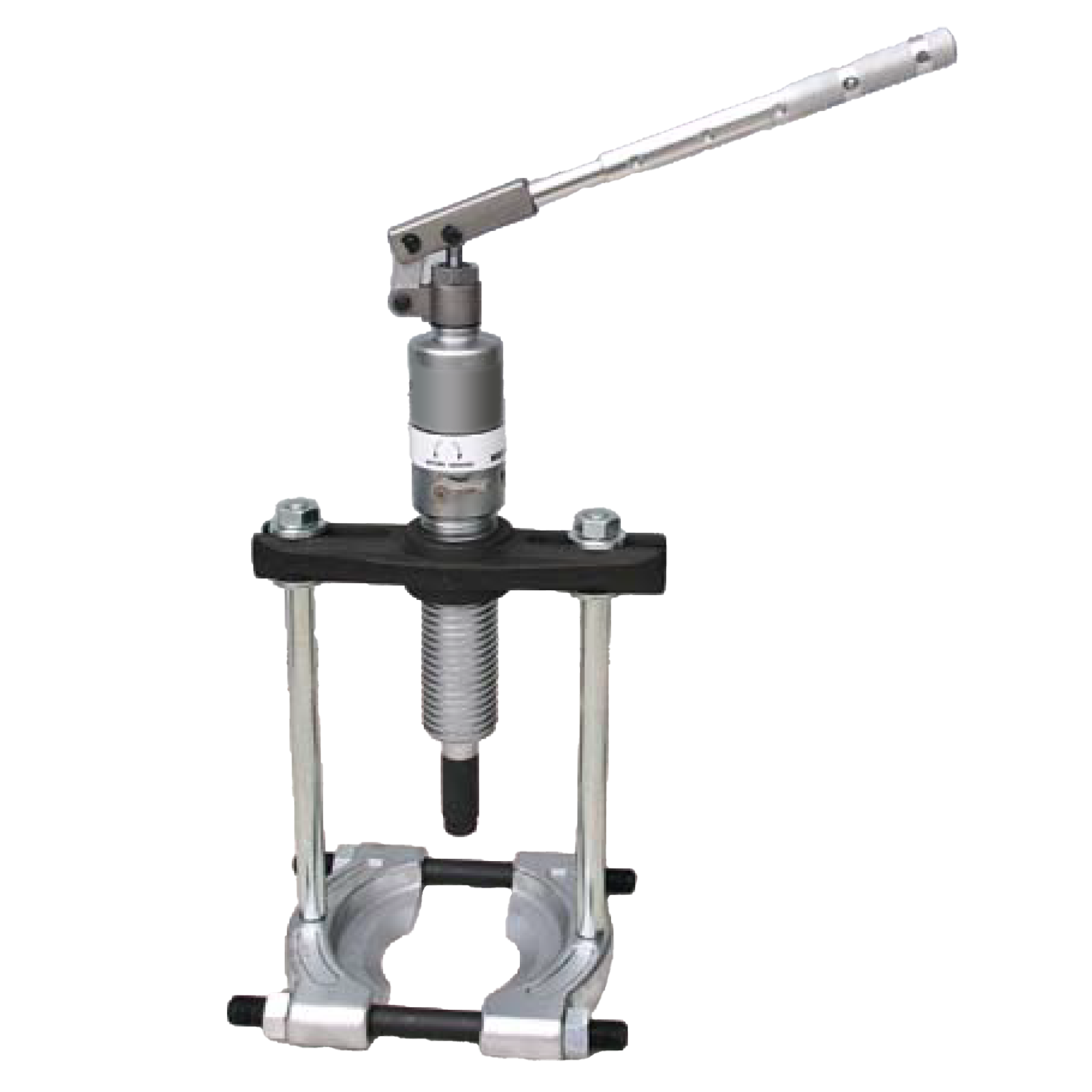

Technical Data - Cross Bearing Pullers
| Model No. | Capacity (Ton) |
Reach (Max. mm) A |
Spread (Max. mm) C |
Stroke (mm) H |
Pump Tip (mm) | ||
|---|---|---|---|---|---|---|---|
| E | F | G | |||||
| CLPM410 | 4 | 224 | 145 | 60 | 42 | 22 | 84 |
| CLPM610 | 6 | 255 | 220 | 70 | 45 | 23 | 90 |
| CLPM810 | 8 | 255 | 230 | 85 | 50 | 25 | 122 |
| CLPM1210 | 12 | 298 | 310 | 85 | 60 | 28 | 115 |
* Including the hydraulic pump body and bearing attachment.
Technical Data - Accessory Set
| Model No. | Capacity (Ton) |
A (mm) |
D (mm) Min-Max |
C (mm) |
CC (mm) Min-Max |
Thread (inch) |
Bearing Attachment |
Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| CLP412 | 4 | 224 | 12 - 70 | 163 | 100 - 145 | 1/2"-13UNC | YC9015 | 6.5 |
| CLP612 | 6 | 255 | 28 - 150 | 260 | 115 - 220 | 5/8"-11UNC | YC9025 | 10.5 |
| CLP812 | 8 | 255 | 28 - 150 | 260 | 110 - 230 | 5/8"-11UNC | YC9025 | 10.5 |
| CLP1212 | 12 | 298 | 20 - 200 | 360 | 140 - 310 | 3/4"-10UNC | YC9035 | 11.5 |
* Excluding the hydraulic pump body.

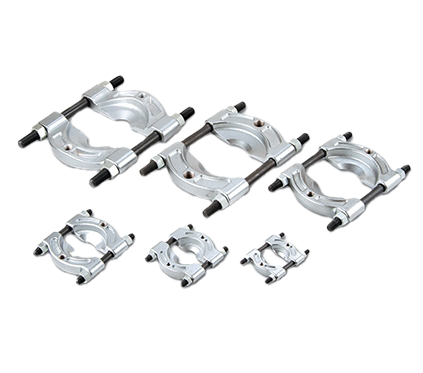

Technical Data - Bearing Attachments
| Model No. | D Min - Max (mm) |
C (mm) |
L (mm) |
I (mm) |
ØT (inch) |
ØM (inch) |
Weight (kgs) |
|---|---|---|---|---|---|---|---|
| CLYC9005 | 5-60 | 17 | 120 | 92 | 3/8-24UNF | 3/8-16UNC | 0.7 |
| CLYC9010 | 15-60 | 20 | 135 | 130 | 1/2-20UNF | 3/8-16UNC | 1.5 |
| CLYC9015 | 12-70 | 27 | 165 | 156 | 5/8-18UNF | 1/2-12UNC | 2.5 |
| CLYC9025 | 28-150 | 33 | 275 | 207 | 3/4-16UNF | 5/8-11UNC | 5.5 |
| CLYC9035 | 20-200 | 38.5 | 350 | 240 | 1-14UN | 3/4-10UNC | 11 |
| CLYC9035A | 20-200 | 38.5 | 350 | 240 | 1-14UN | 1-14UN | 11 |
