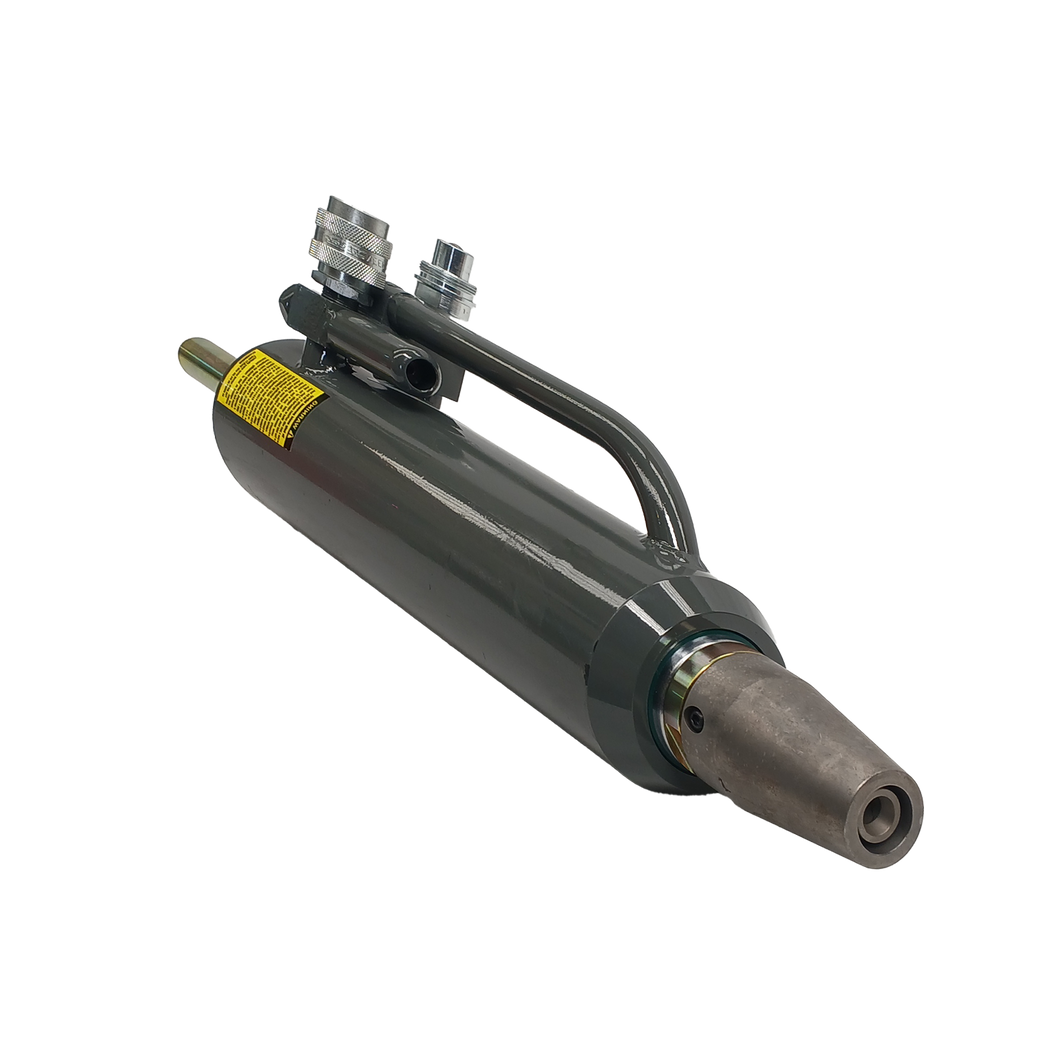

10 Ton Light Weight Mono Strand Stressing Jacks

10 Ton Light Weight Mono Strand Stressing Jacks

INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE

10 Ton Light Weight Mono Strand Prestressing Jacks

Features

  • Ideal for Initialing in the pre-stressing industry and Roof Bolting in the Mining Industry
  • 150mm & 200mm stroke models
  • Jacks will accept both 12.7 and 15.2mm strand by a simple Jack Jaw change

Model Number

PJM-10150-CHDA

 PJM-10200-CHDA

Capacity

10 Ton

10 Ton

Stroke

150mm

200mm
Outside Dia

79.4mm

79.4mm

Piston Rod Dia

54.2mm

54.2mm

Centre Hole

21mm

21mm

Max Pressure

10,000PSI

10,000PSI

Weight

9kg

10kg
