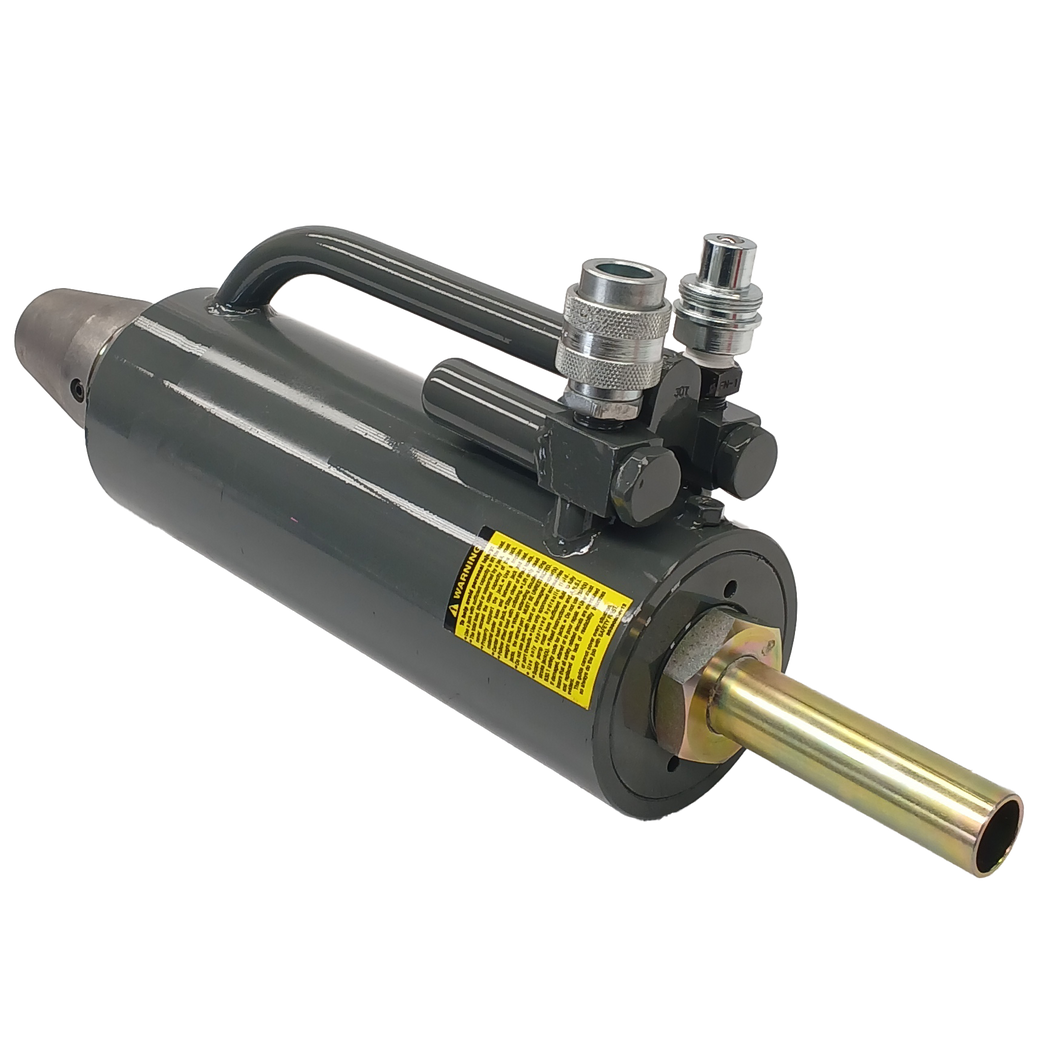

30 Ton Light Weight Mono Strand Stressing Jacks

30 Ton Light Weight Mono Strand Stressing Jacks

Regular price INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE

30 Ton Light Weight Mono Strand Prestressing Jacks

Features

  • All 30 Ton Mono Strand Jacks have the ability to accept 0.5 (1/2”) & 0.6 (5/8”) Strand
  • Comes with carry handle
  • Spring Loaded Nose, or Solid Nose
  • Fitted with Safety Relief Valve
  • Horizontal or Vertical coupler set up.
  • 2 x Male or 2 x Female or Male & Female
  • Internal anti rotation and hydraulic seating can also be fitted.

Model Number

PJM-30200-CHDA

PJM-30600-CHDA

Capacity

30 Ton

30 Ton

Stroke

200mm

600mm

Outside Dia

108mm

108mm

Bore

88.9mm

88.9mm

Inner OD

50.8mm

50.8mm

Area

42.43 sq/cm

42.43 sq/cm

Piston Rod Dia

66.6mm

66.6mm

Centre Hole

24mm

24mm

Max Pressure

10,000PSI

10,000PSI

Weight

21kg

40kg
