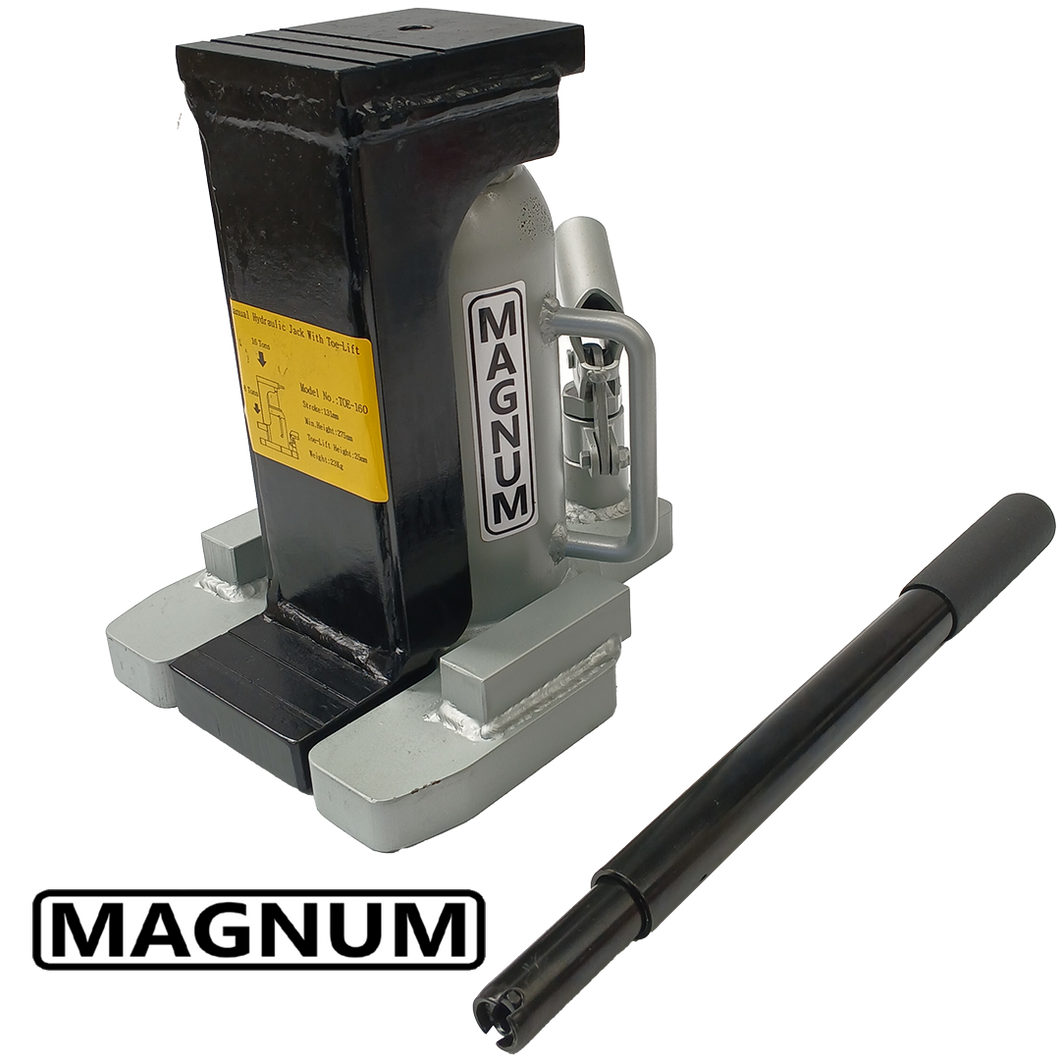

16 Ton Toe Jacks

16 Ton Toe Jacks

BUY FROM $895.00 INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE Want to hire instead? Find out if we can help   Enquire here

  • Capacity 16 Ton
  • Heat treated & chrome plated hydraulic rod provide longer seal life and optimum performance.
  • Internal safety valve prevents toe jack from being used beyond its rated capacity.
  • Housing welding onto the forged base ensures to be free of leakage problem.
  • High strength Toe-Lift for long life use.
  • Low toe heights fit in tight clearances.
  • Swivel sockets for easy operation.
  • Can be operated quickly by hand without a loading.
  • Removable handle saves the handle force during operation.
  • Max. working pressure 700 bar / 10,000 psi.

Model No. Top Cap

Toe-Lift
Cap

 Stroke Min.
Height		 Max.
Height

Piston
Rod Dia.

Base
Dimensions

Height

Top-Lift

 Weight
U (Tons) F (Tons) (mm) A (mm) B (mm) J (mm) LxW (mm) H (mm) L1xW1 (mm) (kg)
MAGTJ-160 16 8 131 275 406 52 211x256 25 90x55 23.2
