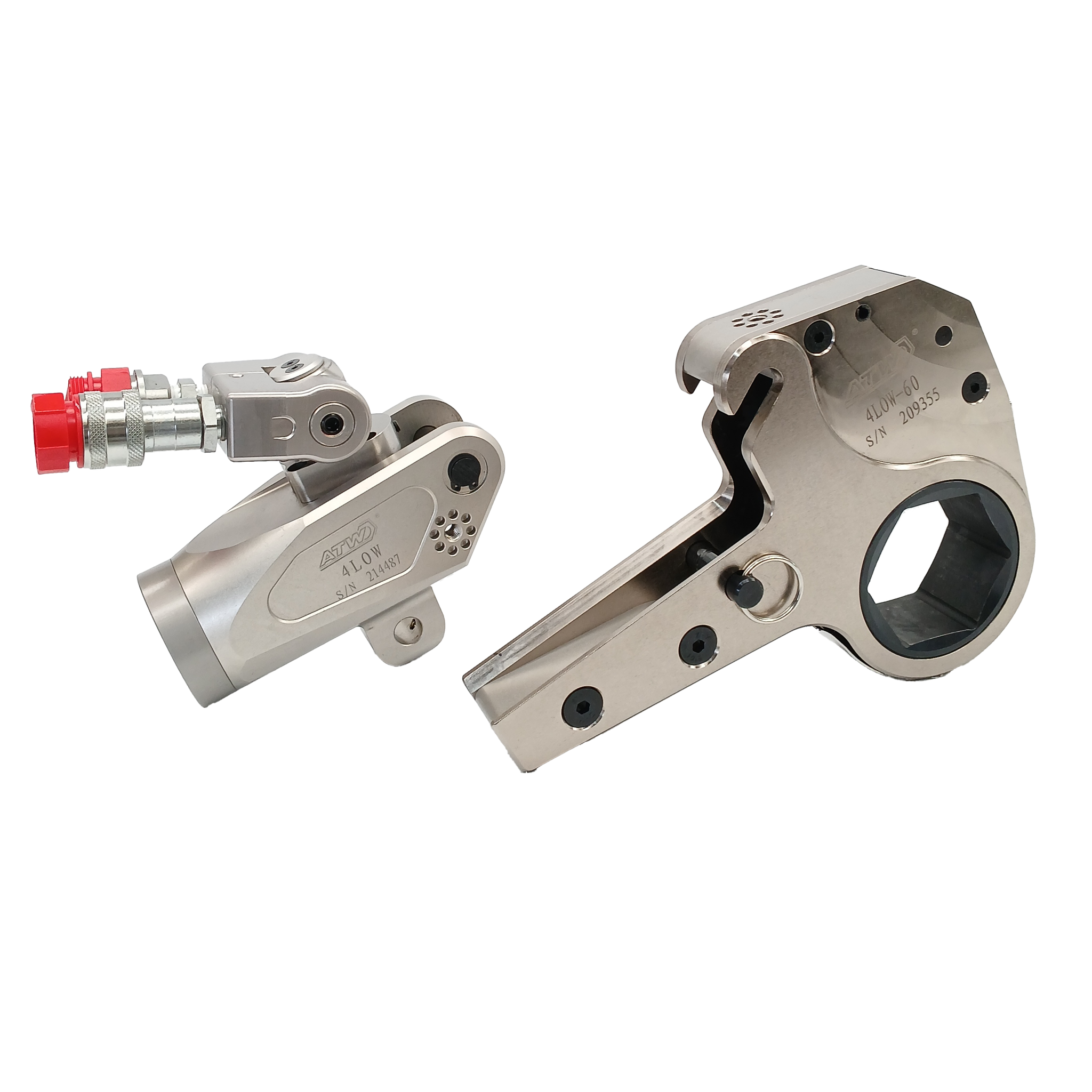

Hydraulic Cassette Torque Wrenches from American Torque Wrench ATW Series are designed to both tighten and loosen nuts requiring high torque. Suitable for continuous operation at maximum pressure. A 2-peice unit - Hydraulic cassette head & cassette link. The Cassette head can be used with any size cassette link of the same series.


  • Max. pressure 10,000 PSI
  • Repeatable accuracy ±3%
  • Durable structure, aluminium-titanium alloy drive cylinder
  • 360° x 180° uni swivel couplings
  • Low profile with minimum wall thickness
  • Pressure relief valve prevents over pressure
  • Various hex adapters, reducers & reaction arms available


Model

Hex Size (mm)

Torque Range (Nm)

Torque Range (lb-ft)

Cassette Head Weight (kg)

Cassette Link Weight (kg)

2LOW

22~55

232~2328

171~1717

1

1.6

60

241~2414

177~1780

1.7

4LOW

32~65

585~5848

431~4313

2

4.4

70~80

647~6474

477~4774

4.6

8LOW

41~95

1095~10938

807~8067

3.3

8

100~105

1175~12017

866~8863

8.4

14LOW

50~117

1852~18521

1366~13660

5.5

11.6

18LOW

75~135

2601~26011

1918~19185

6

12.8

30LOW

110~155

4188~41882

3088~30890

11.4

29

160~175

4459~44593

3288~32890

30


Dimensions (mm)

Model

L

H1

H2

W1

W2

A

R

2LOW

186.1

125.9

102.3

32

51

11~16

27~46

128.5

105

4LOW

241

177

135.7

42

66

14~16

36~61

246

187

145.7

8LOW

294

207

169

53

83

16~22

46~78

301

216

178

14LOW

361

239

204

64

99

19~31

60~87

18LOW

364.3

268.7

230.7

70

111

22~23

65~101

30LOW

430

303

272

85

131

25~36

78~128

441

315

285
