ATW Electric Tensioning Pumps
ATW Electric Tensioning Pumps
ATW Electric Tensioning Pumps

ATW Electric Tensioning Pumps

Regular price INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE

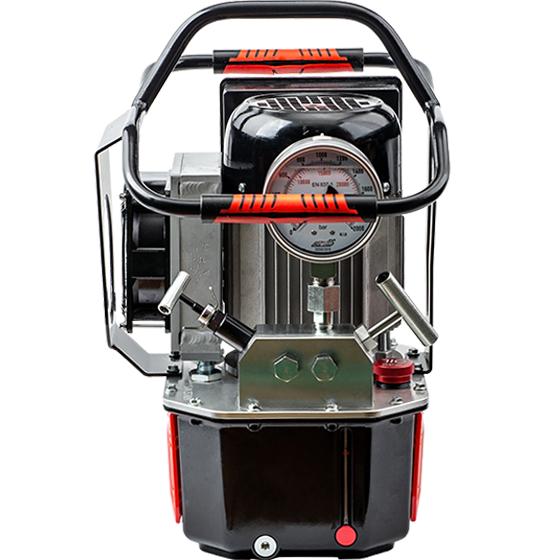

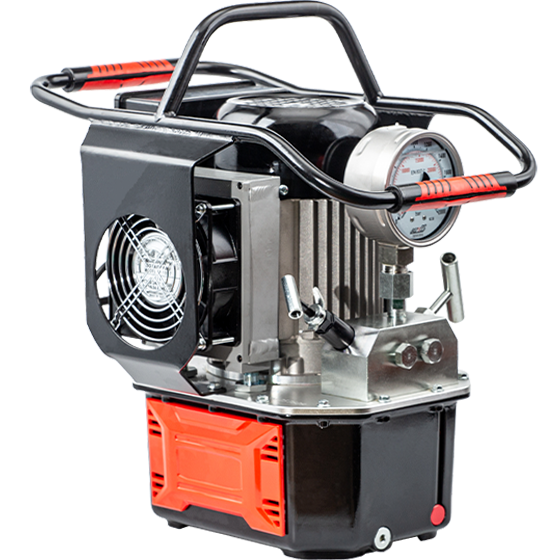

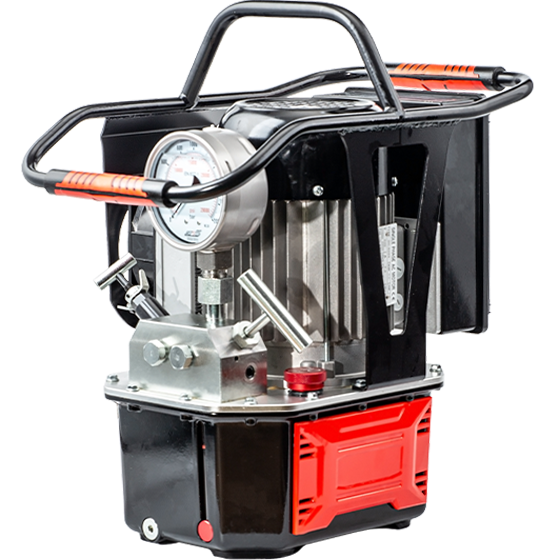

  • Single-Acting Ultra-High Pressure Hydraulic Tensioning Pump.
  • Max. Pressure: 43,500 Psi (3,000bar)
  • For bolt tensioning and other High Pressure equipment often used in the marine vessel & wind power industry.
  • Convenient adjustable pressure regulator with a high precision calibrated gauge.
  • Simple and quick operation with quick connect couplings.
  • Lightweight compact design.
  • Oil cooler allows heavy duty use.
  • Optional alloy skid plate available for tank protection.

Model

Max. Pressure
(Psi)

Max. pressure
(bar)

Power
(kW)

Tank Capacity
(L)

Flow Rate (L/min)

Oil Outputs (Ports)

Weight
(kg)

Dimensions
(HxWxL)
(mm)

Low

High

HLP3-20

29000

2000

1.1

5.5

6.0

0.3

2x1/4" BSP

27

464 x 419 x 304

HLP3-30

43500

3000

5.4

0.15
