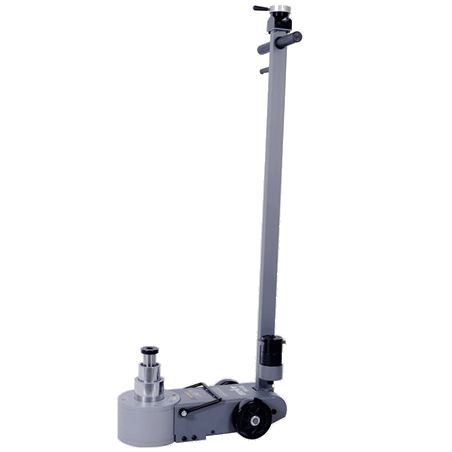

Our Magnum range of Heavy- Lift Air operated Hydraulic Jacks are engineered and manufactured to offer all customers a heavy-duty lifting solution that is reliable, safe, and easy to use. Whether your lifting heavy machinery or a heavy vehicle the Magnum Heavy-Lift Jack range will get the job done.
Features
- Slow down valve
- Safety overload valve
- Hard chrome plated internal and external cylinder
- Self-return switch for safe working
- Oil anti-back system
- XTP Industry sealing (double sealing function)
Specifications
Model: MAGS40-3EL
Capacity: 40 Ton/22 Ton/10 Ton
Net Weight: 34Kgs
Working Air Pressure: 130psi - 174psi
Min. Height: 125mm
Max. Height: 405mm
Lifting Height: 40 Ton: 57mm
22 Ton: 45mm
10 Ton: 47mm
Extension Height: 75+45+11mm
