Wind Tensioners

INTERESTED IN PURCHASING THIS PRODUCT?ENQUIRE HERE FOR PRICE Want to hire instead? Find out if we can help   Enquire here

Tensioners have quality designed in with standard features that enhance durability and efficiency to get jobs done faster and safer.

Quality Means Lower Life-Cycle Costs:

  • Achieves 90% proof load requirement for ISO 898 Grade 10.9 bolts
  • Fully enclose load cell eliminates debris in piston retraction mechanism
  • Auto-engaging geared nut rotator
  • Self-energizing, long life seals


Enhanced Usability:

  • Piston Stroke Indicator
  • High pressure swivel coupling (optional on WSS & WSL)
  • 1350 Bar maximum operating pressure
  • Automatic piston retraction mechanism


Designed with Safety in Mind:

  • Overstroke prevention for safe operation

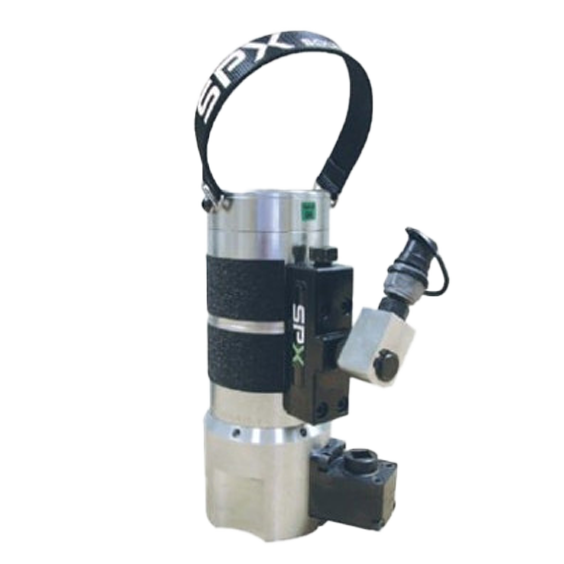

WDD Series

  • Robust gear drive
  • Auto-engaging Geared Nut Rotator
  • Small Diameter, high load 2-Stage hydraulic load cell
  • Fast application using 1/2" drive
  • Cycle counter (optional)


WSD Series

  • Robust Gear Drive
  • Auto-engaging Geared Nut Rotator
  • Low Height hydraulic load cell
  • Fast application using 1/2" drive
  • Cycle counter (optional)


WSS & WSL Series

  • Suitable for ISO Metric threaded, and All-Thread bars.
  • Geared or Manual Nut Rotator
  • Long & Short Stroke models
  • Anti-slip grip surface
  • High pressure swivel coupling (optional)



      Stroke Max Load Hydraulic Area   Weight
Order No. Metric Bolt Size
Stud Prot.
(mm)		 (in.) (mm) (lbs. tonf) (Kn) (in2) (mm2)  (lbs.) (kg)
WDD1-M30 M30 63-70 0.27 7 52.49 467 53.60 3458 14.77 6.70
WDD2-M33 M33 67-74 0.27 7 63.96 569 65.33 4215 16.75 7.60
WDD3-M36 M36 71-80 0.40 10 75.42 671 77.03 4970 20.39 9.25
WDD4-M39 M39 72-86 0.40 10 90.04 801 91.93 5931 24.47 11.10
WDD4-M42 M42 80-92 0.40 10 104.1 926 106.27 6856 27.78 12.60

WSD1-M30 M30 63-81 0.27 7 52.49 467 53.60 3458 14.55 6.60
WSD2-M33 M33 67-86 0.27 7 63.96 569 65.33 4215 16.75 7.60
WSD3-M36 M36 71-93 0.40 10 75.42 671 77.03 4970 19.40 8.80
WSD4-M39 M39 72-95 0.40 10 90.04 801 91.93 5931 24.70 11.20
WSD4-M42 M42 80-96 0.40 10 104.1 926 106.27 6856 26.90 12.20

For twin hydraulic couplings (for multiple tool connection) add 'TC' after order number.

Model

A

B

C

D

E

F

G

mm

mm

mm

mm

mm

mm

mm

WDD1-M30

74

210

112

37

91

290

64

WDD2-M33

79

214

115

39.5

93

298

70

WDD3-M36

85

239

117

42.5

96

332

76

WDD4-M39

92

249

121

46

99

348

79

WDD5-M42

98

255

124

49

102

360

90



Model

A

B

C

D

E

F

G

mm

mm

mm

mm

mm

mm

mm

WSD1-M30

103

138

127

32

91

211

68

WSD2-M33

112

140

132

35

93

218

74

WSD3-M36

122

149

136

37

96

233

82

WSD4-M39

133

153

142

42

99

238

88

WSD5-M42

140

157

146

45

102

250

93



Model

A

B

C

D

E

G

H

mm

mm

mm

mm

mm

mm

mm



WSS1/WSS1-10

103

158

98

42

99

103

206

WSS1/WSS1-11

103

158

98

42

99

103

219

WSL1/WSL1-10

114

205

103

42

99

130

255

WSL1/WSL1-11

114

205

103

42

99

103

266

WSS2/WSS2-125

119

168

105

42

102

112

226

WSS2/WSS2-138

119

168

105

42

102

112

238

WSL2/WSL2-125

129

211

110

42

102

112

269

WSL2/WSL2-138

129

211

110

42

102

112

280



Model

A

B

C

D

E

G

H

mm

mm

mm

mm

mm

mm

mm

WSS1/WSS1-10

103

158

98

42

99

103

206

WSS1/WSS1-11

103

158

98

42

99

103

219

WSL1/WSL1-10

114

205

103

42

99

130

255

WSL1/WSL1-11

114

205

103

42

99

103

266

WSS2/WSS2-125

119

168

105

42

102

112

226

WSS2/WSS2-138

119

168

105

42

102

112

238

WSL2/WSL2-125

129

211

110

42

102

112

269

WSL2/WSL2-138

129

211

110

42

102

112

280
